Varenummer: 3016305

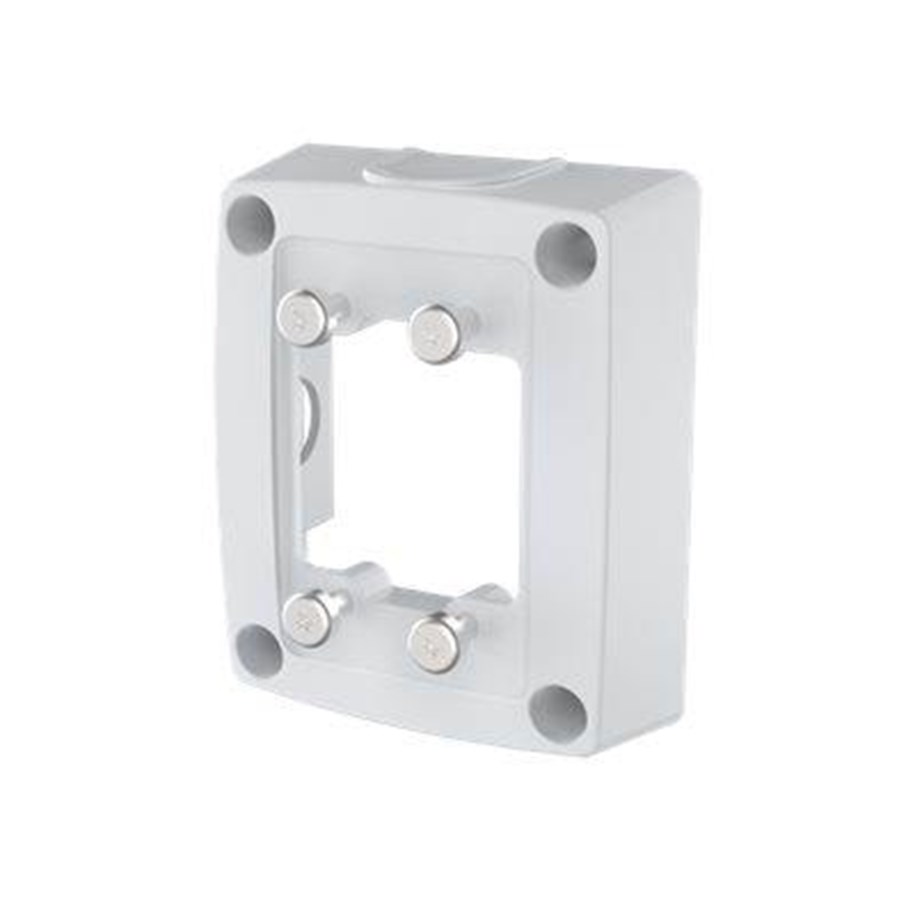

Axis TQ1601-E
Bakboks for kamerakanal, for AXIS M1135, M1137, P1375, P1377, P1378, P1385, Q1615, Q1645, Q1647, T92G20
897,00 kr
717,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Bestillingsvare, 8-10 dager til forsendelse
AXIS TQ1601-E Conduit Back Box is an aluminum mount with a coating that alleviates corrosion. Its design with long screws and a washer helps dissipate vibrations, and the top/bottom and side conduit entries make installation easier. When used together with AXIS T94Q01A Wall Mount, the Ethernet cable can be routed through or along the wall (from left or right). The side and top/bottom holes are compatible with 3/4" conduits, M25 cable protection products, and with AXIS Conduit Interface (ACI) adapter range (NPS/U-shape). AXIS TQ1601-E can also be used to cover a single gang junction box.
Produsent
Varenummer
3016305
Model
02336-001
Ean
7331021076068
Til produsentens hjemmeside
Modell/Type
Kabelboks
Støttede plasseringer/plasseringer som kan benyttes
Universell
Merkekompatibilitet
Axis
Produktfarge
Hvit
Kompatibilitet
T94Q01A
T92E
T93F
P13-E
Q16-E
T92G20
T91E61
Kroppsmateriale
Aluminium
Internasjonal beskyttelses (IP)-kode
IP66
Kan monteres på vegg
Ja
Tilkoblings-gjenge
3/4"
Bredde
130 mm
Dybde
50 mm
Høyde
158 mm
Vekt
540 g
Inneholder ikke
PVC
Harmonisert system (HS)-kode
85299020
Egenskaper
Modell/Type
Kabelboks
Støttede plasseringer/plasseringer som kan benyttes
Universell
Merkekompatibilitet
Axis
Produktfarge
Hvit
Kompatibilitet
T94Q01A
T92E
T93F
P13-E
Q16-E
T92G20
T91E61
Kroppsmateriale
Aluminium
Internasjonal beskyttelses (IP)-kode
IP66
Ergonomi
Kan monteres på vegg
Ja
Tilkoblings-gjenge
3/4"
Vekt og dimensjoner
Bredde
130 mm
Dybde
50 mm
Høyde
158 mm
Vekt
540 g
Tekniske detaljer
Inneholder ikke
PVC
Logistikk data
Harmonisert system (HS)-kode
85299020
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
