Varenummer: 3423136

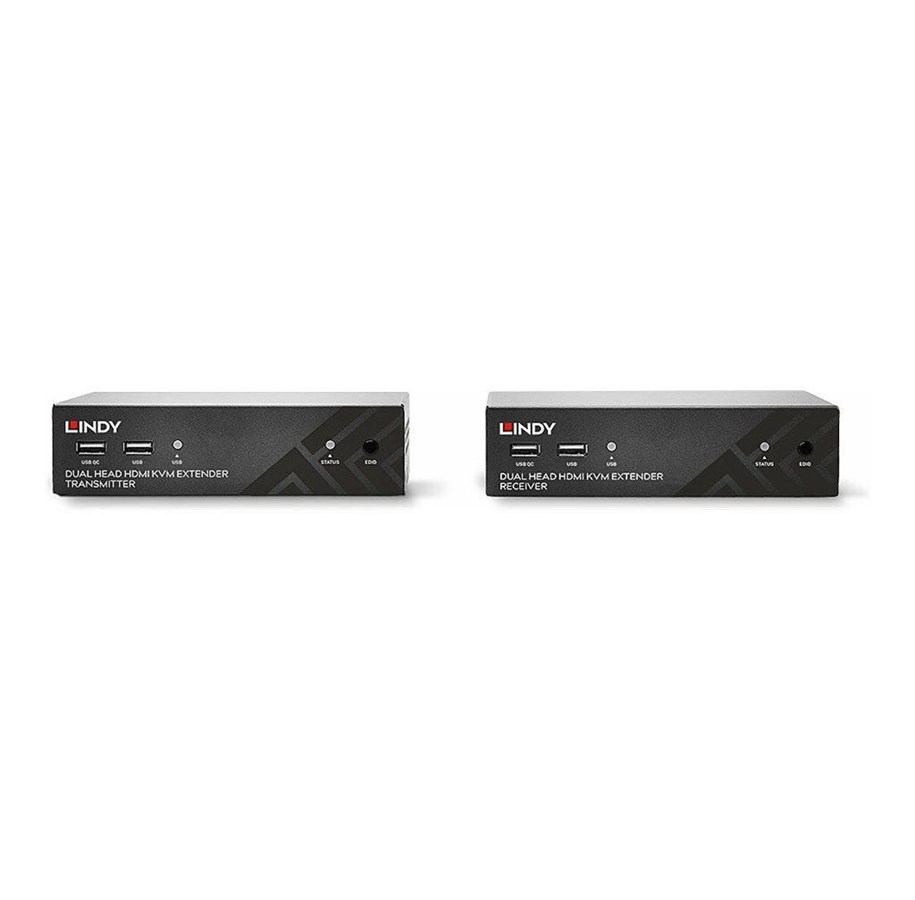

Lindy - transmitter and receiver - video/audio/infrared/serial extender - HDBaseT 2.0

Sender og mottaker, video/lyd/infrarød/seriell-utvider, HDBaseT 2.0, opp til 100 m

11 854,00 kr 9 483,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
Lader følger med
Charger included

The Lindy 100 m Cat.6 Dual Head HDMI, USB and RS-232 KVM Extender is a powerful, versatile solution for extending and controlling a dual head workstation up to distances of 100 m (328.08 feet) over a single Cat.6 cable using HDBaseT. It's utilization of the HDBaseT 2.0 specification allows for the transmission of audio, video and various control methods with just one connection between the transmitter and receiver units. The use of two HDMI displays at resolutions up to 1920 x 1080 @ 60 Hz and USB HID's in a convenient remote location creates a super effective productivity console. This gives users the ability to fully operate a high-performance PC which is stored in a convenient location, helping to meet the requirements of modern offices as multiple applications can be open and sharing data simultaneously. Up to 7.1 Digital and Stereo analog can be passed through from the source to standalone amplifiers, speakers and headphones to ensure any relevant audible information or data is understood by the user.Serial and Bi-directional IR add to this extender's comprehensive suite of control methods. Source and display devices can be controlled at either point of a configuration using an IR remote control, whilst serial input and control devices can be used at the remote console. In applications which rely heavily on the uptime of source devices such as medical environments or manufacturing, the Lindy 100 m Cat.6 Dual Head KVM extender can be used to ensure PCs or servers can be locked in a secure location to prevent any unauthorized access or tampering of equipment and protect them from major power outages, fires or water leaks. It's reliable HDBaseT connection means users can be confident that control will always be maintained over the source device even in the most demanding environments.

Produsent
Varenummer
3423136
Model
39374
Ean
4002888393744
Til produsentens hjemmeside
Produktbeskrivelse
LINDY - sender og mottaker - video/lyd/infrarød/seriell-utvider - HDBaseT 2.0
Enhetstype
Video/lyd/infrarød/seriell-utvider
Produktformfaktor
Ekstern
Lokalisering
Europa, Storbritannia, USA, Australia
Dataoverføringshastighet
8.92 Gbps
Datakjedeprotokoll
HDBaseT 2.0
Maks. overføringsdistanse
100 m

Generelt

Enhetstype
Video/lyd/infrarød/seriell-utvider
Produktformfaktor
Ekstern
Farge
Svart
Lokalisering
Europa, Storbritannia, USA, Australia

Nettverkstilknytning

Overføringsteknologi
Kablet
Datakjedeprotokoll
HDBaseT 2.0
Dataoverføringshastighet
8.92 Gbps
Maks. oppløsning
1920 x 1080 @ 60 Hz
Maks. overføringsdistanse
100 m
Statusindikatorer
USB, status
Egenskaper
7,1 kanalers lydstøtte, metallhus, EDID-kopieringsknapp
Tilpassede standarder
HDCP 1.4

Ekspansjon / Tilkoplinger

Grensesnitt
2 x HDMI
4 x USB - Type A
1 x RS-232 (toveis) - DB-9
1 x IR (utgang) - mini jack
1 x IR (inngang) - mini jack
1 x SPDIF - TOSLINK
1 x lydutlinje - mini jack
1 x mikrofon - mini jack
1 x mini-USB - Type B

Diverse

Inkludert tilbehør
8 gummiføtter
Medfølgende kabler
1 x mini-USB til USB-kabel - 1 m
2 x IR-mottakerkabel - 1.5 m
2 x IR-senderkabel - 1.5 m
Tilpassede standarder
RoHS, REACH, FCC Part 15 B, WEEE

Strømforsyning

Strømenhet
Ekstern strømadapter
Installert antall
2
Max støttet Ant
2

Størrelser og vekt

Dimensjoner (BxDxH) / vektdetaljer
Sender: 15.6 cm x 13 cm x 4.2 cm / 720 g
Mottaker: 15.6 cm x 13 cm x 4.2 cm / 720 g

Størrelser og vekt (forsendelse)

Fraktbredde
47 cm
Fraktdybde
22 cm
Frakthøyde
6.7 cm
Fraktvekt
2.5 kg

Miljøparametere

Min. driftstemperatur
0 °C
Maks. Driftstemperatur
65 °C
Driftsfuktighet
0 - 90 % (ikke-kondenserende)

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
