Varenummer: 3345359
Eaton series 16-Port Rack Console VGA KVM Switch w/ 19" LCD 1U TAA
KVM-svitsj, 16 x KVM port(s), 1 lokalbruker, rackmonterbar
22 335,00 kr
17 868,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 10-12 dager til forsendelse

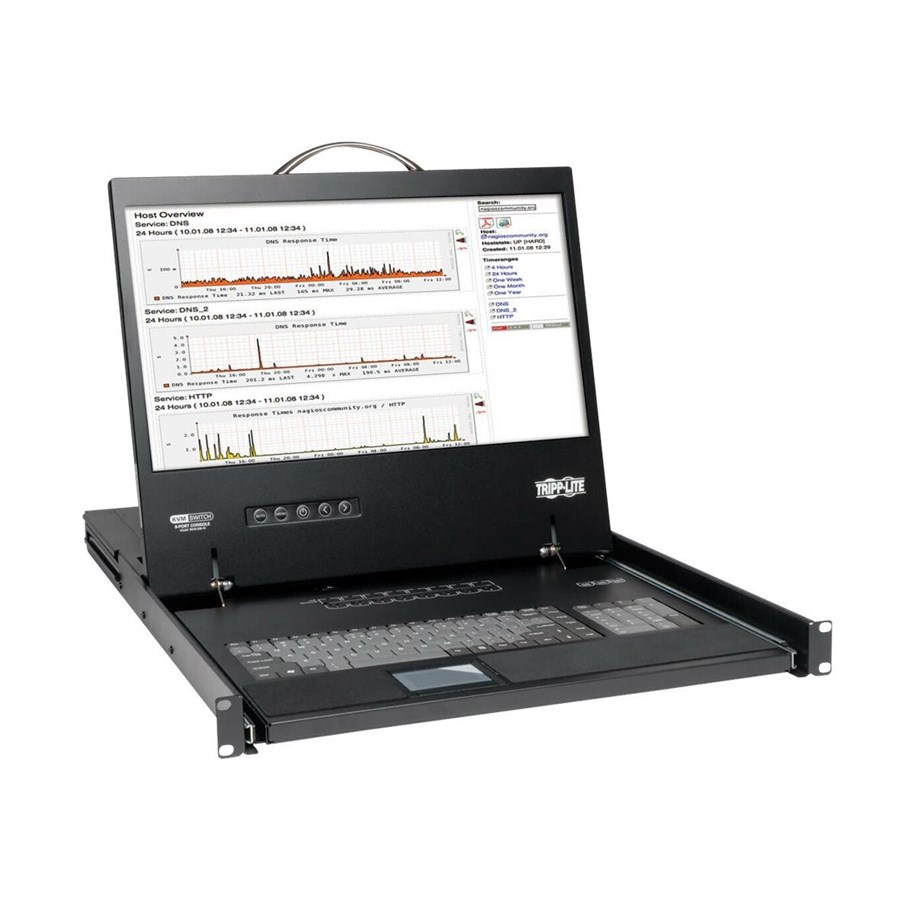

Tripp Lite's B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the cost-effective solution for controlling up to 16 directly connected computers/servers.The B040-016-19 has a built-in 19" LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Password protection prohibits unauthorized users from accessing the connected computers.With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses Tripp Lite P780-series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a Tripp Lite B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Produsent
Varenummer
3345359
Model
B040-016-19
Ean
0037332140319
Til produsentens hjemmeside
Skjermdiagonal
48,3 cm (19")
Skjermoppløsning
1366 x 768 piksler
Display
LCD
On Screen Display (OSD)
Ja
Materiale
Galvanisert stål
Formfaktor
1U
Innebygd KVM-bryter
Ja
Antall KVM-bryterporter
16
Samsvarssertifikat
RoHS
Opprinnelsesland
Taiwan
Videoopptaksgrensesnitt
PS/2; USB; VGA
Video tilkoblingstype
VGA
I/O-porter
16 x HD15F
USB
Sertifisering
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM
Strømforbruk (vanlig bruk)
30 W
Strømforbruk (standby)
5 W
AC-adapter inngangsspenning
120/230 V
AC-adapter frekvens
50/60 Hz
Innput-strøm
1.4/0.8 A
Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 60 °C
Bredde
449,3 mm
Høyde
43,4 mm
Dybde
722,4 mm
Vekt
14,5 kg
Pakkevekt
18,5 kg
Pakkebredde
591,8 mm
Pakkedybde
825 mm
Pakkehøyde
154,9 mm
Masterkassens (ytterkassens) bredde
591,8 mm
Masterkassens (ytterkassens) lengde
825 mm
Masterkassens (ytterkassens) høyde
154,9 mm
Masterkassens (ytterkassens) bruttovekt
18,5 kg
Produkter per masterkasse (ytterkasse)
1 stykker
Skjerm
Skjermdiagonal
48,3 cm (19")
Skjermoppløsning
1366 x 768 piksler
Display
LCD
On Screen Display (OSD)
Ja
Tekniske detaljer
Materiale
Galvanisert stål
Formfaktor
1U
Innebygd KVM-bryter
Ja
Antall KVM-bryterporter
16
Samsvarssertifikat
RoHS
Opprinnelsesland
Taiwan
Tilkoblingsevne
Videoopptaksgrensesnitt
PS/2; USB; VGA
Video tilkoblingstype
VGA
I/O-porter
16 x HD15F
USB
Sertifikater
Sertifisering
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM
Energihåndtering
Strømforbruk (vanlig bruk)
30 W
Strømforbruk (standby)
5 W
AC-adapter inngangsspenning
120/230 V
AC-adapter frekvens
50/60 Hz
Innput-strøm
1.4/0.8 A
Miljømessige forhold
Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 60 °C
Vekt og dimensjoner
Bredde
449,3 mm
Høyde
43,4 mm
Dybde
722,4 mm
Vekt
14,5 kg
Datainnpakking
Pakkevekt
18,5 kg
Pakkebredde
591,8 mm
Pakkedybde
825 mm
Pakkehøyde
154,9 mm
Logistikk data
Masterkassens (ytterkassens) bredde
591,8 mm
Masterkassens (ytterkassens) lengde
825 mm
Masterkassens (ytterkassens) høyde
154,9 mm
Masterkassens (ytterkassens) bruttovekt
18,5 kg
Produkter per masterkasse (ytterkasse)
1 stykker
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
