KVM-switch - ATEN 16-Port USB - HDMI KVM Switch with  USB Perip - CS17916-AT-G
Varenummer: 2466910
CS17916-AT-G
CS17916-AT-G

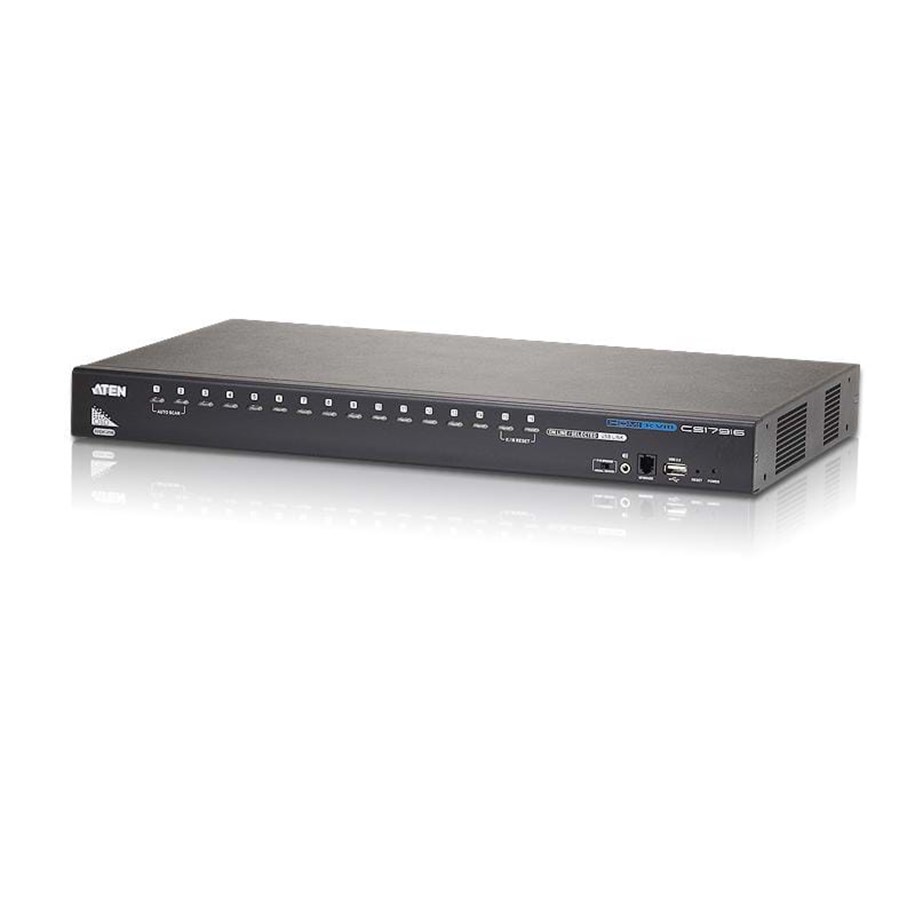

ATEN 16-Port USB - HDMI KVM Switch with USB Perip

KVM / lyd / USB-svitsj, USB, 16 x KVM/lyd/USB, 1 lokalbruker, stasjonær, rackmonterbar

23 001,00 kr 18 400,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.The CS17916 can be cascaded up to two levels - to control up to 256 computers - all from a single console.In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.Furthermore, the CS17916 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed.The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each co


CS17916
16-Port USB HDMI KVM Switch

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.

The CS17916 can be cascaded up to two levels ? to control up to 256 computers ? all from a single console.

In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS17916 comes with ATEN?s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed.

The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).


CS17916 Diagram


Computer Connections
Direct16
Max.256 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
Console Ports2 x USB Type A Female (Black)
1 x HDMI Female
2 x Mini Stereo Jack Female
(Green; 1 x front panel, 1 x rear panel)
KVM Ports16 x USB Type B Female (White)
16 x HDMI Female (White)
16 x Mini Stereo Jack Female (Green)
Firmware Upgrade1 x RJ11 Female (Black)
Power1 x DC Jack
USB Hub2 x USB Type A Female (White)
(1 x front panel, 1 x rear panel)
Switches
Port Selection16 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
LEDs
USB Link16 (Green)
Power1 (Dark Green)
On Line /Selected16 (Orange)
Emulation
Keyboard / MouseUSB
Video1080p / 1920 x 1200 (DVI)
Scan Interval1 ? 255 Seconds (Default: 5 secs)
Power ConsumptionDC 5.0V; 12.2W
Environmental
Operating Temperature0 ? 50°C
Storage Temperature-20 ? 60°C
Humidity0 ? 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight3.86 kg
Dimensions (L x W x H)43.24 x 25.72 x 4.40 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.

Produsent
Varenummer
2466910
Model
CS17916-AT-G
Ean
4719264641602
Til produsentens hjemmeside
Produktbeskrivelse
ATEN CS17916 - KVM / lyd / USB-svitsj - 16 porter - rackmonterbar
Enhetstype
KVM / lyd / USB-svitsj - 16 porter - kaskademulighet
Utførelse
Rackmonterbar 1U
Undertype
KVM
Porter
16 x KVM/lyd/USB
Antall KVM-brukere
1 lokalbruker
Egenskaper
Oppgraderbar fastvare, innbygd 2-porters USB 2.0-hub, HDCP-samsvar, Video DynaSync, metallhus
Tilpassede standarder
USB 2.0
Dimensjoner (BxDxH)
43.72 cm x 25.66 cm x 4.4 cm
Vekt
3.86 kg

Generelt

Enhetstype
KVM / lyd / USB-svitsj - 16 porter - kaskademulighet
Utførelse
Stasjonær, rackmonterbar 1U
Undertype
KVM
Porter
16 x KVM/lyd/USB
Antall lokale KVM-brukere
1 lokalbruker
Tastatur/mus-grensesnitt
USB
Maks. oppløsning
1920 x 1080 / 1080p
Egenskaper
Oppgraderbar fastvare, innbygd 2-porters USB 2.0-hub, HDCP-samsvar, Video DynaSync, metallhus
Tilpassede standarder
USB 2.0
Statusindikatorer
Strøm, USB

Ekspansjon / Tilkoplinger

Grensesnitt
1 x tastatur (USB) Type A
1 x mus (USB) Type A
1 x HDMI Type A
2 x høyttalere minijakk
2 x USB 2.0 Type A
16 x tastatur (USB) / mus (USB) Type B
16 x HDMI Type A
16 x høyttalere minijakk

Strømforsyning

Strømenhet
Ekstern strømadapter
Strømforbruk ved drift
12.2 watt

Diverse

Tilleggsutstyr inkludert
4 fotputer
Medfølgende kabler
2 x tastatur- / mus- / videokabel
Rack-monteringssett
Inkludert
Tilpassede standarder
RoHS

Mål og vekt

Bredde
43.72 cm
Dybde
25.66 cm
Høyde
4.4 cm
Vekt
3.86 kg
