Varenummer: 2953688

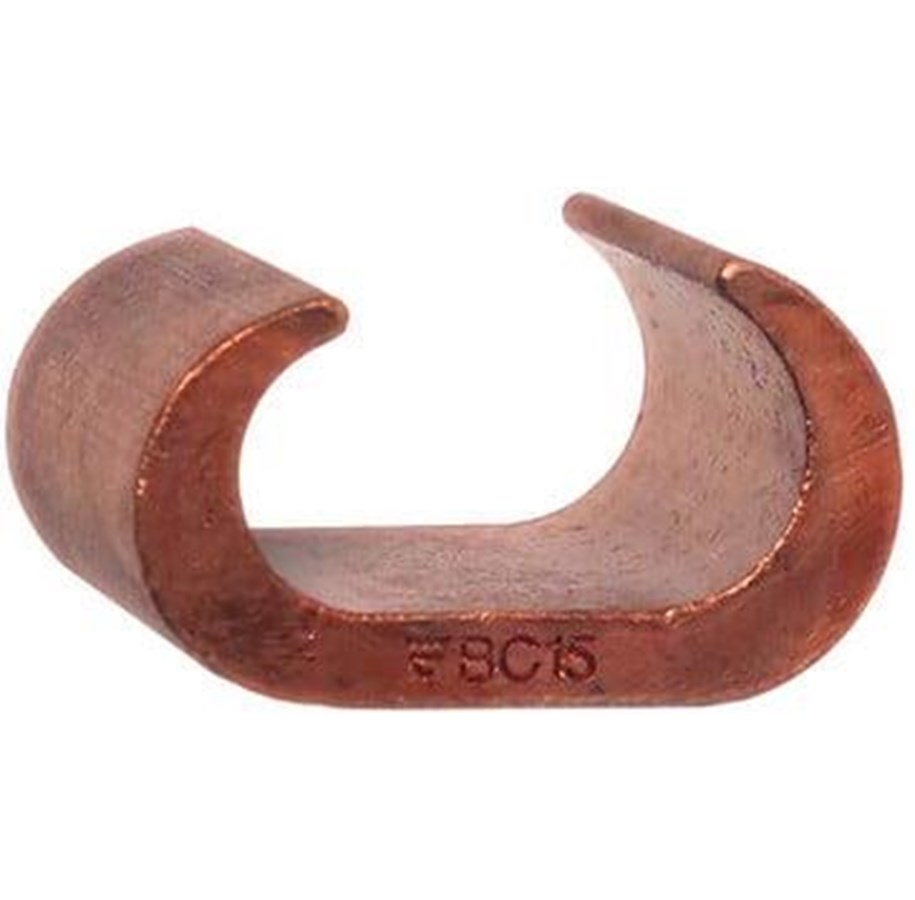

Elpress C-sleeve c95-120 25-185/175-240 mm2
Cu braching sleeve for Cu-conductors area min-max 25-185 mm2Total area min-max 175-240 mm2For stranded (class 2) Cu-conductors (acc. IEC 60228)Branching sleeve for splicing and branching earth lines as well as lightning control installationsMaterial: Cu 99.95%Unique patented solutionPossible to front feed all branchesDie no.: BC15 Recommended tool: V1300, V250Replaces Elpress C-sleeves: C15, C15-13, C16-13, C16-9, C18-8 and C18-8
427,00 kr
341,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 2-4 dager til forsendelse
C-connector C95-120, 25-185/175-240 mm2 Product description: Cu branching connector for Cu conductors range min.-max. 25-185 mm2Total range min.-max. 175-240 mm2For multi-stranded (class 2) Cu conductors (according to IEC 60228)Branching connector for connection and branching of grounding wires and lightning conductor installationsMaterial: Cu 99.95%Unique patented solutionPossibility of front feeding all branchesTray no.: BC15 Recommended tools: V1300, V250Replaces Elpress C-connectors: C15, C15-13, C16 -13, C16 -9, C18 -8 andC18 -8 Technical specifications:Packing size: 25Tool types (professional): V1300,V250a :45B :35
