Varenummer: 3201906

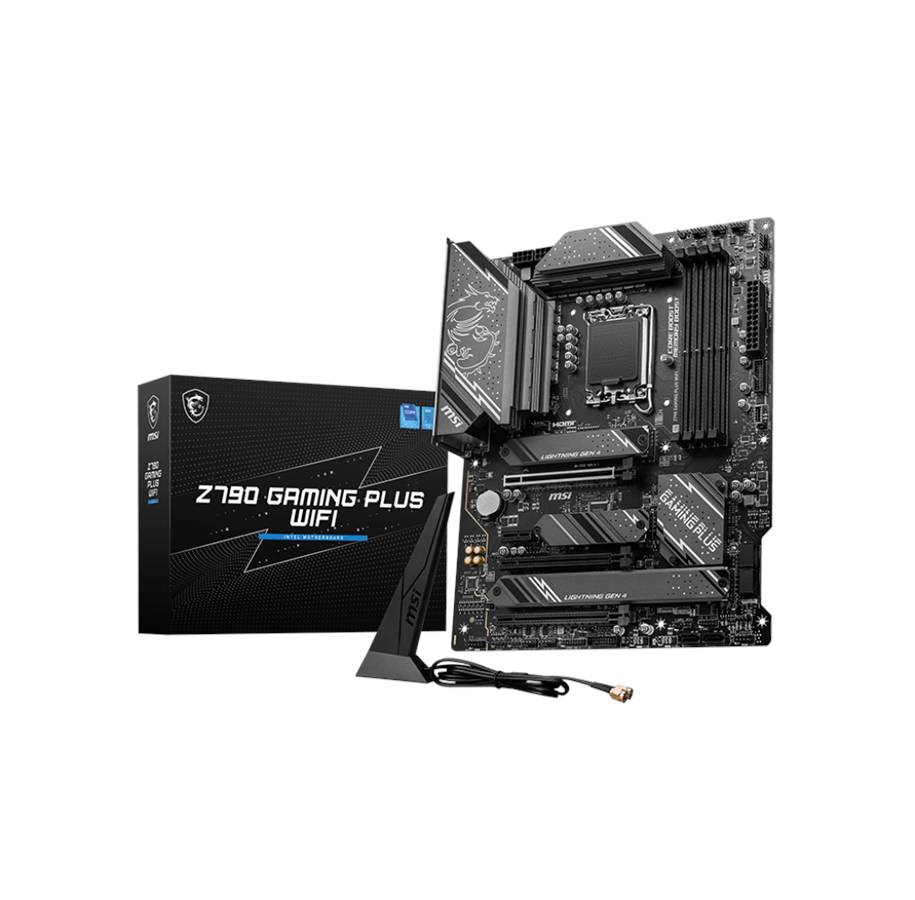

MSI Z790 GAMING PLUS WIFI Hovedkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX
Hovedkort, størrelse: ATX, Intel LGA1700 socket, Intel Z790 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), lagerporter: 6 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skjermtilkobling: 1 x Displayport 1.4 / 1 x HDMI 2.1, Intel I225-V 2.5 Gigabit nettverk (LAN), Intel WiFi 6E & Bluetooth 5.3, Intel Xe Graphics støttes (Krever CPU med VGA), Realtek ALC897 HD Audio (8-kanaler) lydkort, MSI Mystic Light software
Denne bundle inkluderer
Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk
Verdt 490,00 krGratis frakt (privatkunde)
Bestillingsvare, 6-8 dager til forsendelse
Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Produsent
Varenummer
3201906
Model
Z790 GAMING PLUS WIFI
Ean
4711377134712
Til produsentens hjemmeside
Produktbeskrivelse
MSI Z790 Gaming Plus Wifi - hovedkort - ATX - LGA1700-sokkel - Z790
Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z790
Prosessorsokkel
1 x LGA1700-sokkel
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron)
Maks. RAM-størrelse
192 GB
Støttet RAM
4 DIMM-spor - DDR5, ikke-ECC, ikke-bufret
Lagerporter
6 x SATA-600 (RAID), 4 x M.2
USB/FireWire-porter
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Generelt
Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z790
Prosessorsokkel
LGA1700-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium Gold / Celeron)
Støttet RAM
Maks størrelse
192 GB
Teknologi
DDR5
Bussklokke
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Lyd
Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC897
Tilpassede standarder
High Definition Audio
LAN
Nettverksgrensesnitt
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
3 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor)
1 x M.2 socket (Key E)
4 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
2 x PCIe 3.0 x1
3 x M.2 socket (2242/2260/2280 M.2 Key M-spor)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor)
1 x M.2 socket (Key E)
Lagergrensesnitt
SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Grensesnitt
1 x HDMI
1 x DisplayPort
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydinnlinje - minijakk
1 x lydutlinje (side-surround) - minijakk
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tastatur / -mus
1 x DisplayPort
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x lydinnlinje - minijakk
1 x lydutlinje (side-surround) - minijakk
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2-tastatur / -mus
Interne overflater
4 x USB 2.0 - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x Thunderbolt 4 - header
1 x lyd - header
4 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x Thunderbolt 4 - header
1 x lyd - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter
Egenskaper
BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS, ACPI 6,4 støtte, SMBIOS 3,5 støtte, MSI ClickBIOS 5
Maskinvarefunksjoner
MSI Mystic Light, Debug LED, M.2 Shield FROZR, MSI Core Boost, MSI Audio Boost, Extended Heatsink Design, formontert I/O-skjerm, 6 Layer PCB, MSI PCIe Steel Slot, Water Pump Header, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Steel Armor, MSI Memory Boost
Diverse
Tilleggsutstyr inkludert
Wi-Fi-antenne, 3 x M.2 klips, m.2-skrue / avstandssett, kabelklistremerke
Medfølgende kabler
2 x Seriell ATA-kabel
Inkludert programvare
Drivers & Utilities, MSI Center, Intel Extreme Tuning Utility, MSI CPU-Z, Norton 360 Deluxe (60 dagers prøveversjon), AIDA64 Extreme - MSI Edition, Adobe Creative Cloud (gratis prøveversjon), Adobe Acrobat Reader
Tilpassede standarder
DisplayPort 1.4, FIPS, FISMA
Bredde
30.5 cm
Dybde
24.4 cm
