Varenummer: 3433045

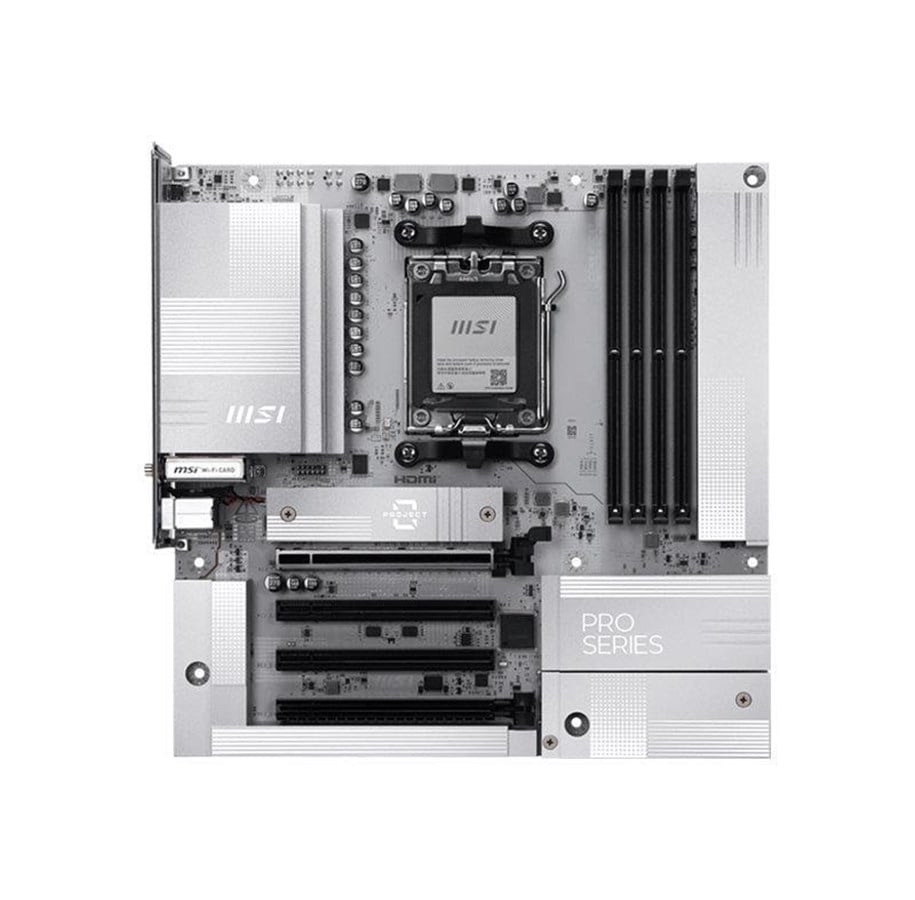

MSI PRO B850M-A WIFI PZ - motherboard - micro ATX - Socket AM5 - AMD B850 Hovedkort - AMD B850 - AMD AM5 socket - DDR5 RAM - Micro-ATX
Hovedkort, micro ATX, Socket AM5, AMD B850 Chipset, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, innbygd grafikk (CPU kreves), HD-lyd (8-kanalers)
2 511,00 kr
2 008,80 kr eksl. mva
Denne bundle inkluderer
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse
Experience performance with the MSI PRO B850M-A WIFI PZ motherboard, designed for the Ryzen processors. This micro ATX motherboard offers a rich feature set, including support for high-speed DDR5 RAM with speeds up to 8200 MT/s when overclocked, ensuring that users can harness processing power for demanding applications and gaming. The motherboard is equipped with multiple expansion slots, featuring PCIe 4.0 and PCIe 5.0 x16 for graphics and high-speed storage, as well as dedicated M.2 slots for faster data transfer rates than traditional SATA connections. Connectivity is a strong point with the MSI PRO B850M-A WIFI PZ, offering USB 3.2 Gen 2 and USB-C ports for versatile connections with peripherals. With built-in high definition audio, users can enjoy immersive sound quality for an enhanced multimedia experience. The motherboard includes 5 Gigabit Ethernet and support for Wi-Fi 6E technology, ensuring fast and reliable connections. Built with durability in mind, it features a 6 Layer PCB and MSI Steel Armor that protect components and maintain performance over time.
Produsent
Varenummer
3433045
Model
PRO B850M-A WIFI PZ
Ean
4711377384308
Til produsentens hjemmeside
Produktbeskrivelse
MSI PRO B850M-A WIFI PZ - hovedkort - micro ATX - Socket AM5 - AMD B850
Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B850
Prosessorsokkel
1 x Socket AM5
Kompatible prosessorer
Ryzen (støtter Ryzen 7000/8000/9000-serien)
Maks. RAM-størrelse
256 GB
Støttet RAM
4 DIMM-spor - DDR5, ikke-ECC, on-die ECC, ikke-bufret
Lagerporter
4 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Generelt
Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD B850
Prosessorsokkel
Socket AM5
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter Ryzen 7000/8000/9000-serien)
Støttet RAM
Maks størrelse
256 GB
Teknologi
DDR5
Bussklokke
4800 MT/s, 5600 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6400 MT/s (O.C.), 8200 MT/s (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC, on-die ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
AMD EXPO-teknologi, dobbeltkanalsminnearkitektur
Lyd
Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC897
Tilpassede standarder
High Definition Audio
LAN
Nettverkskontroller
Realtek RTL8126VB
Nettverksgrensesnitt
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x1-modus)
1 x PCIe 4.0 x16 (x4-modus)
2 x M.2 socket (2260/2280 M.2 Key M spor)
4 x 288-pins DIMM
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x1-modus)
1 x PCIe 4.0 x16 (x4-modus)
2 x M.2 socket (2260/2280 M.2 Key M spor)
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1
Grensesnitt
1 x HDMI
2 x USB-C 3.2 Gen 2
3 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x DisplayPort
1 x LAN (5Gigabit Ethernet)
1 x lydinnlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje - minijakk
2 x antenne
2 x USB-C 3.2 Gen 2
3 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x DisplayPort
1 x LAN (5Gigabit Ethernet)
1 x lydinnlinje - minijakk
1 x mikrofon - minijakk
1 x lydutlinje - minijakk
2 x antenne
Interne overflater
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x lyd - header
1 x seriell - header
1 x SPI - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x lyd - header
1 x seriell - header
1 x SPI - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter
Egenskaper
BIOS Type
AMI
BIOS-egenskaper
MSI ClickBIOS
Maskinvarefunksjoner
MSI EZ DIY, 8+2+1 Phase Power Design, MSI EZ OC, Extended Heatsink Design, M.2 Shield FROZR, formontert I/O-skjerm, MSI AI Engine, MSI AI LAN Manager, Frozr AI Cooling, 6 Layer PCB, 2oz Copper PCB, overspenningsvern, MSI Memory Boost, transientspenningsdempere, MSI Stainless Steel Back I/O, overstrømsvern, MSI Steel Armor, MSI Audio Boost, MSI Mystic Light
Diverse
Tilleggsutstyr inkludert
EZ Wi-Fi antenne, 2 x EZ M.2 klips II, EZ M.2 klips II fjerner
Medfølgende kabler
1 x Seriell ATA-kabel
Inkludert programvare
MSI Center
Bredde
24.384 cm
Dybde
24.384 cm
