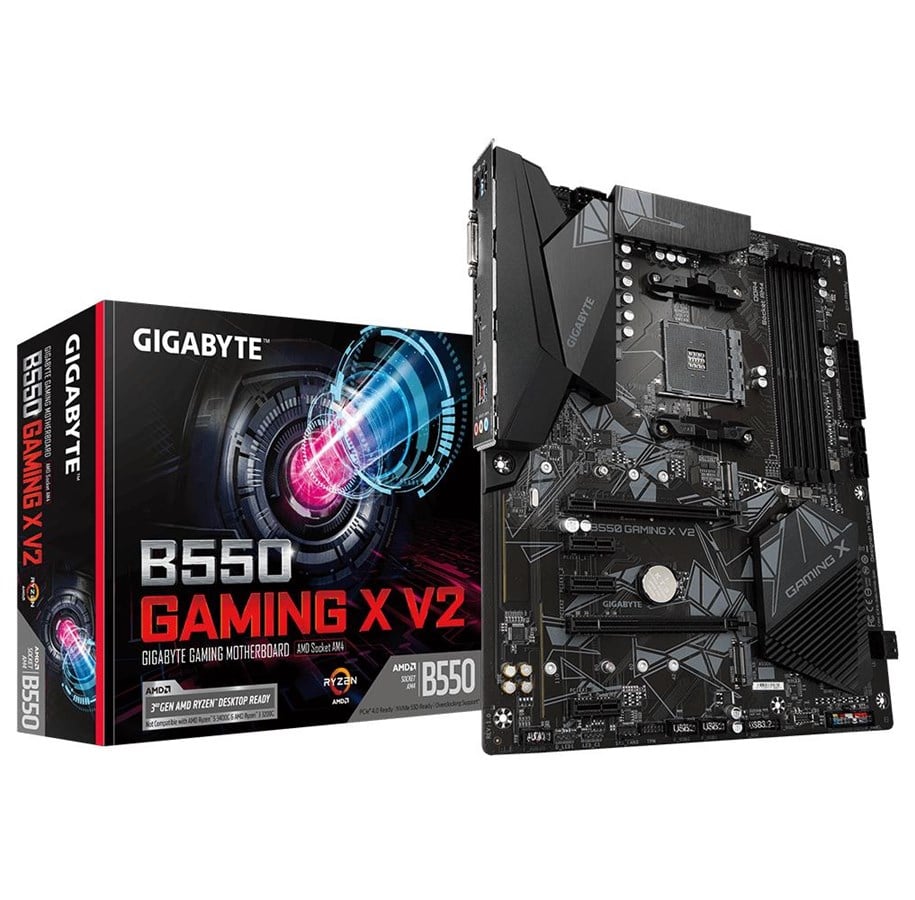

GIGABYTE B550 GAMING X V2 Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

Generelt
Produkttype	Hovedkort - ATX
Brikkesett type	AMD B550
Prosessorsokkel	Socket AM4
Maks antall prosessorer	1
Kompatible prosessorer	Ryzen (støtter 3.-generasjons Ryzen and New Generation Ryzen med Radeon Graphics)

Støttet RAM
Maks størrelse	128 GB
Teknologi	DDR4
Bussklokke	2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.)
Støttet RAM-integritetskontroll	Ikke-ECC, ECC (drift i ikke-ECC-modus)
Registrert eller bufret	Ikke-bufret
Egenskaper	Dobbeltkanalsminnearkitektur, støttede ECC-moduler kjører i ikke-ECC-modus

Lyd
Type	HD-lyd (8-kanalers)
Audio Codec	Realtek ALC887
Tilpassede standarder	High Definition Audio

LAN
Nettverkskontroller	Realtek RTL8118
Nettverksgrensesnitt	Gigabit Ethernet

Ekspansjon / Tilkoplinger
Utvidelsesspor	1 x CPU 4 x 288-pins DIMM 1 x PCIe 4.0 x16 (PCIe 4.0 x16-modus (med 3.-generasjons Ryzen CPU); PCIe 3.0 x16-modus (med New Generation Ryzen med Radeon Graphics CPU)) 1 x PCIe 3.0 x16 (x2-modus) 3 x PCIe 3.0 x1
Lagergrensesnitt	SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt	1 x LAN (Gigabit Ethernet) 1 x USB 3.2 Gen 2 1 x lydinnlinje - minijakk 1 x lydutlinje - minijakk 1 x mikrofon - minijakk 1 x HDMI 1 x DVI-D 2 x USB 2.0 3 x USB 3.2 Gen 1 1 x PS/2-tastatur / -mus
Interne overflater	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x lyd - header
Strømkontakter	24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper
BIOS Type	AMI
BIOS-egenskaper	WfM 2.0 støttet, UEFI BIOS, SMBIOS 2.7-støtte, DMI 2.7-støtte, ACPI 5.0-støtte
Overvåking av maskinvare	CPU-kjernetemperatur, chassis-temperatur, viftehastighet for CPU, viftehastighet for chassis, systemspenning, CPU overopphetingsbeskyttelse, Kjernespenning CPU
Maskinvarefunksjoner	Q-Flash, HDCP-samsvar, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, 10+3 Phase Power Design, formontert I/O-skjerm, Solid Pin Power Connectors, RGB FUSION 2.0

The GIGABYTE B550 motherboard uses a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

With NVMe PCIe 4.0 /3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Realtek 8118 LAN is a high-performance and friendly network chip for players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with comprehensive features and fast and smooth Internet experience.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

With the B550 motherboard, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB/addressable LED light strips for their PC build. Already feature-filled with colors and patterns, RGB Fusion 2.0 is now upgraded to improve the addressable LED support. With external addressable LED strips where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
