Varenummer: 2848643

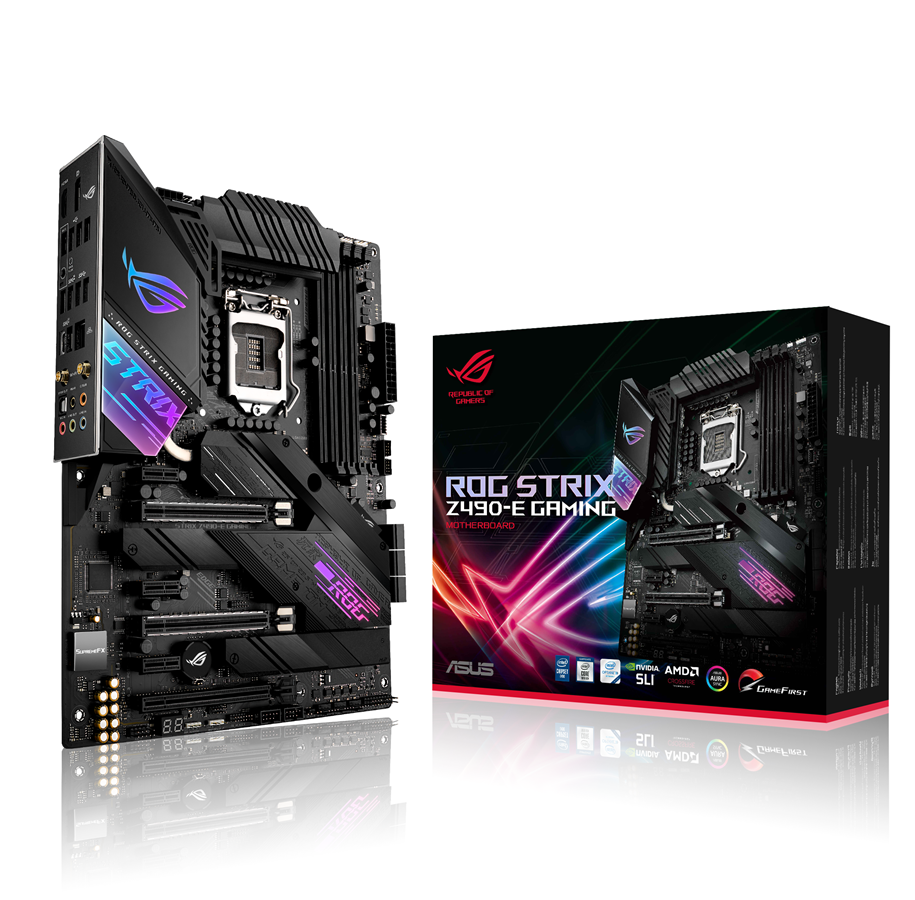

ASUS ROG STRIX Z490-E GAMING [Wi-Fi] Hovedkort - Intel Z490 - Intel LGA1200 socket - DDR4 RAM - ATX

Hovedkort, ATX, Intel LGA1200 Socket, Intel Z490, 2 x PCI-Express 3.0 x16, Dual DDR4-2933 - 4 x DIMM slots, 6 x SATA-600 / 2 x M.2 NVMe (2242 / 2260 / 2280), USB 3.2 Type A & C, DisplayPort / HDMI forbindelse, Intel I225-V 2.5 Gigabit LAN, Intel WiFi 6 (802.11ax) & Bluetooth 5.1, Intel HD Graphics støtte (CPU kreves), Realtek ALC1200 HD Audio (8-kanaler), støtter SLI / CrossFireX - ASUS AURA innebygd, RGB-lys i hovedkortet!

Varen er utgått
Se lignende produkter

Zenbook 14


ROG Strix Z490-E Gaming

Zenbook 14


• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors

• Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

• Optimized Thermal Design: MOS Heatsink with U-shaped heatpipe, extended VRM heatsink, dual onboard M.2 heatsinks, including a bundled fan bracket and additional MOS fan for improved cooling

• High-performance Networking: On-board Intel® WiFi 6 AX201 (802.11 ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard

• Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2 and USB 3.2 Gen 2 Type-A and Type-C® connectors

• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily

• DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-Code and FlexKey

• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

• Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action

Zenbook 14

Power Delivery Enhancements

Digital power control and an array of power stages ensure Strix Z490-E Gaming has the muscle to control the latest Intel CPUs.

1. The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.

2. ROG Strix Z490-E Gaming utilizes 14+2 DrMOS power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

Zenbook 14

Cooling Innovation

1. Fan Bracket and MOS Fan: A bundled fan bracket and additional MOS fan provide additional cooling to areas around the VRM as you push your build to its limits.

2. MOS Heatsink with U-shaped Heatpipe: The U-shaped design allows rapid and even heat transfer from the VRM to the extended MOS heatsink for better performance and wattage resistance. In addition, the MOS heatsink provides a large contact area for MOSFETs and chokes.

3. Extended VRM heatsink: The extended heatsink at the end of heatpipe increases thermal mass to offset the additional heat generated by high voltage, lowering temperatures by up to 5°C.

4. Dual M.2 Heatsinks: The M.2 heatsinks keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Zenbook 14

Cooler By Design

ROG Strix Z490 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS

• Multiple Temperature Sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

• 4-pin PWM/DC Fan Header: Every onboard header supports auto-detection of PWM or DC fans.

• AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.

• Water Pump Header: A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.

Zenbook 14

Intelligent Control

Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.

• AI Overclocking: Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

• AI Cooling: AI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.

• AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

Zenbook 14

Dual PCIe 3.0 M.2

Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

Zenbook 14

Next-gen Connectivity

• WiFi 6 (802.11 ax): Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

• Intel 2.5G Ethernet: Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Zenbook 14

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio Link

The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual Mixer

A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.

Zenbook 14

Undeniably ROG Strix

ROG Strix Z490-E Gaming is unmistakably ROG, it features a mirror-like stainless steel finish, complete with diagonal lines across the I/O shield and futuristic cyber-text.

Zenbook 14

DIY Friendly

• Pre-mounted I/O shield: ROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

• Q-Code: Diagnostic codes provide a reference for fast and easy look up of common installation and component problems.

• FlexKey: The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.

• BIOS Flashback™: BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback port and press the button. Updates can even be performed without having memory or a CPU installed.

RAM

Prosessor/CPU

Produsent
Varenummer
2848643
Model
90MB12P0-M0EAY0
Ean
4718017671620
Til produsentens hjemmeside
Kontakt produsenten
Produktbeskrivelse
ASUS ROG STRIX Z490-E GAMING - hovedkort - ATX - LGA1200-sokkel - Z490
Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z490
Prosessorsokkel
1 x LGA1200-sokkel
Kompatible prosessorer
(støtter 10.-generasjons Intel Core / Pentium Gold / Celeron)
Maks. RAM-størrelse
128 GB
Støttet RAM
4 DIMM-spor - DDR4, ikke-ECC, ikke-bufret
Lagerporter
6 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter
1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

Generelt

Produkttype
Hovedkort - ATX
Brikkesett type
Intel Z490
Prosessorsokkel
LGA1200-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 10.-generasjons Intel Core / Pentium Gold / Celeron)

Støttet RAM

Maks størrelse
128 GB
Teknologi
DDR4
Bussklokke
2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur

Lyd

Type
HD-lyd (8-kanalers)
Audio Codec
SupremeFX (S1220A)
Tilpassede standarder
High Definition Audio, DTS Sound Unbound

LAN

Nettverkskontroller
Intel I225-V
Nettverksgrensesnitt
802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
2 x PCIe 3.0 x16 (dobbelt x8-modus; enkeltkort: x16-modus)
1 x PCIe 3.0 x4
3 x PCIe 3.0 x1
Lagergrensesnitt
SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 3.0 -kontakter: 1 x M.2
PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt
1 x LAN (2.5Gigabit Ethernet)
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x TOSLINK
2 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
1 x USB-C Gen2
1 x DisplayPort
1 x HDMI
4 x USB 2.0
Interne overflater
4 x USB 2.0 - header
1 x USB-C Gen2 - header
2 x USB 3.2 Gen 1 - header
1 x Thunderbolt - header
1 x lyd - header
Strømkontakter
4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
BIOS FlashBack, UEFI BIOS
Sov/Våkne
Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner
Jakk-retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding-teknologi, AMD 3-veis CrossFireX-teknologistøtte, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, DIY Friendly Design, FlexKey-knapp, ASUS ProCool II, GameFirst VI

Diverse

Tilleggsutstyr inkludert
Ekstern antenne, kabelfestebånd, 1 x M.2 skrue, termistorkabel, ROG viftemerker, forlengelseskabel for RGB (RGBW) LED-stripe, MOS-kjølingssett, ASUS-vifteholder, ROG-takkekort, forlengelseskabel for RGB Addressable LED, gummipute, ROG-nøkkelkjede
Medfølgende kabler
4 x Seriell ATA-kabel
Inkludert programvare
Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer
Bredde
30.5 cm
Dybde
24.4 cm
