90MB14F0-M0EAY0 - ASUS ROG STRIX B550-F GAMING (WI-FI) Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

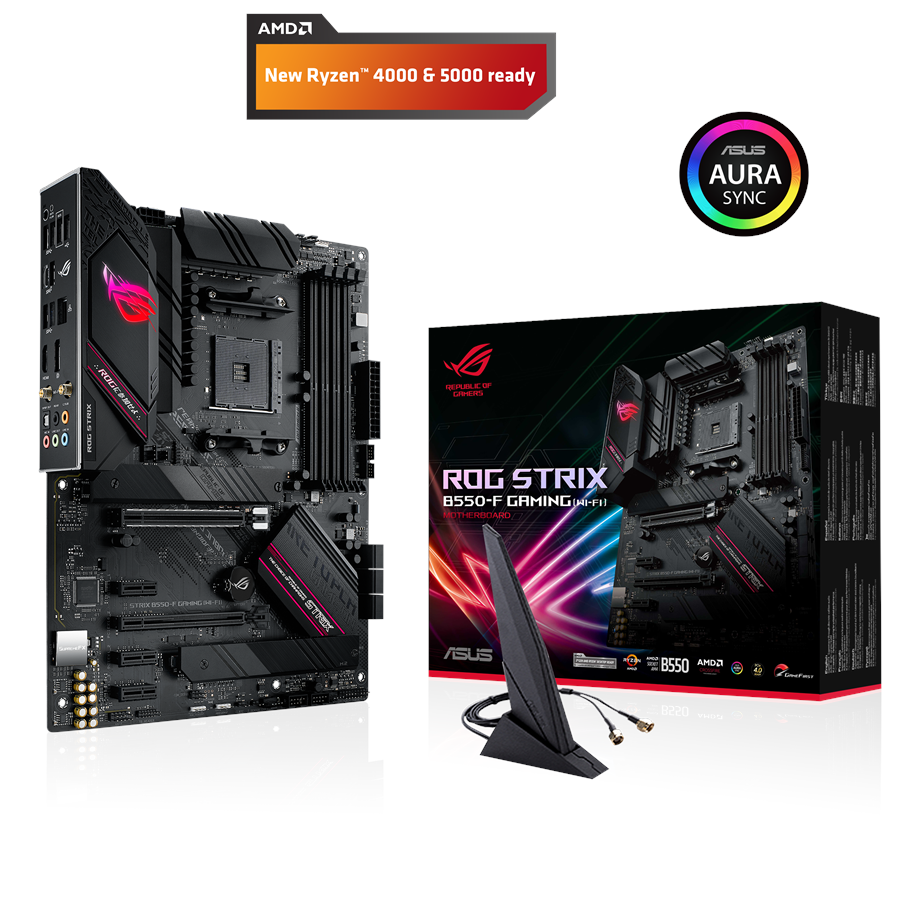

ASUS ROG STRIX B550-F GAMING (WI-FI) Hovedkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX

Hovedkort, ATX, AMD AM4 Socket, AMD B550, 2 x PCI-Express 4.0 x16, Dual DDR4-3200 - 4 x DIMM slots, 6 x SATA-600 / 1 X M.2 NVMe PCI-Express 3.0 & 1 x M.2 NVMe PCI-Express 4.0 (2242 / 2260 / 2280), USB 3.2 Type A & C, DisplayPort / HDMI 2.1 forbindelse, Intel I225-V 2.5 Gigabit LAN, Intel WiFi 6 (802.11ax) & Bluetooth 5.1, AMD Vega Graphics støtte (CPU kreves), Realtek ALC1220A HD Audio (8-kanaler), støtter CrossFireX - ASUS AURA innebygd, RGB-lys i hovedkortet!

Varenummer: 2858700
90MB14F0-M0EAY0
90MB14F0-M0EAY0
90MB14F0-M0EAY0
90MB14F0-M0EAY0
90MB14F0-M0EAY0
90MB14F0-M0EAY0
90MB14F0-M0EAY0
Ord. pris 1 989,00 kr
1 499,00 kr
1 199,20 kr eksl. mva
Begrenset antall, maks. 2 stk. per kunde
Kampanjen avsluttes: 29-11-2021 23:59 - Kampanjeprisen gjelder kun et begrenset antall varer. Når disse er solgt, selges varen igjen til normalpris.
På lager - 1-4 dager til levering
Rimeligste private frakt: 0,00 kr
På lager
+15 stk.

Kjøp julegavene dine nå hos Proshop!

Julegaver kjøpt i perioden 1. november 2021 - 23. desember 2021, kan returneres frem til 31. januar 2022.


Les mer her

ASUS Dying Light

Promotion Period: 8th November 2021 - 31st December 2021
Redemption Period: 22nd November 2021 - 14th January 2022
*while stocks lasts

Detaljer

Produsent: ASUS
Varenummer: 2858700
Model: 90MB14F0-M0EAY0
Ean: 4718017748773

Til produsentens hjemmeside

www.asus.com/Motherboards/ROG-...
ProduktbeskrivelseASUS ROG STRIX B550-F GAMING (WI-FI) - hovedkort - ATX - Socket AM4 - AMD B550
ProdukttypeHovedkort - ATX
Brikkesett typeAMD B550
Prosessorsokkel1 x Socket AM4
Kompatible prosessorerRyzen (støtter 3.-generasjons Ryzen)
Maks. RAM-størrelse128 GB
Støttet RAM4 DIMM-spor - DDR4 ikke-bufret
Lagerporter6 x SATA-600 (RAID), 2 x M.2
USB/FireWire-porter1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
LydHD-lyd (8-kanalers)
LAN2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1

Generelt

Produkttype Hovedkort - ATX
Brikkesett type AMD B550
Prosessorsokkel Socket AM4
Maks antall prosessorer 1
Kompatible prosessorer Ryzen (støtter 3.-generasjons Ryzen)

Støttet RAM

Maks størrelse 128 GB
Teknologi DDR4
Bussklokke 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz
Registrert eller bufret Ikke-bufret
Egenskaper Dobbeltkanalsminnearkitektur

Lyd

Type HD-lyd (8-kanalers)
Audio Codec SupremeFX (S1220A)
Tilpassede standarder High Definition Audio, DTS Sound Unbound

LAN

Nettverkskontroller Intel I255-V / Intel AX200
Nettverksgrensesnitt 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1

Ekspansjon / Tilkoplinger

Utvidelsesspor 1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4-modus)
3 x PCIe 3.0 x1
Lagergrensesnitt SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -kontakter: 2 x M.2
Grensesnitt 1 x LAN (2.5Gigabit Ethernet)
4 x USB 3.2 Gen 1
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x USB-C Gen2
1 x USB 3.2 Gen 2
1 x TOSLINK
1 x lydutlinje (senter/subbasshøyttaler) - minijakk
1 x lydutlinje (bakre) - minijakk
2 x USB 2.0
1 x DisplayPort
1 x HDMI
Interne overflater 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x Thunderbolt - header
Strømkontakter 4-pin ATX12V-kontakt, 24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type AMI
BIOS-egenskaper BIOS FlashBack, UEFI BIOS
Sov/Våkne Wake on LAN (WOL), våkne ved PME
Maskinvarefunksjoner Jakk-retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, lydjakkpåvisningsteknologi, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding-teknologi, AMD CrossFireX-teknologistøtte, Preboot eXecution Environment (PXE), LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, ASUS ProCool, formontert I/O-skjerm, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, GameFirst VI

ROG Strix B550-F Gaming (WiFi)

Zenbook 14

• AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors

• Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support

• Smooth networking: On-board WiFi 6 (802.11ax) and Intel® 2.5Gb Ethernet with ASUS LANGuard

• Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors

• Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds

• DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot

• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header

• Industry-leading Gaming Audio: AI Noise cancellation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio


Zenbook 14

PCIe 4.0-Ready

ROG Strix B550-F Gaming (Wi-Fi) features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.


Zenbook 14

Next-gen Connectivity

WiFi 6 (802.11 ax): Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Intel 2.5G Ethernet: Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.


Zenbook 14

Power Delivery Enhancements

Digital power control and an array of power stages ensure ROG Strix B550-F Gaming (Wi-Fi) has the muscle to control the latest AMD CPUs.

1. PROCOOL POWER CONNECTOR: The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

2. TEAMED POWER STAGES: 12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

3. ALLOY CHOKE & CAPACITOR: Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

4. 6-LAYER PCB: The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.


Zenbook 14

Cooler by Design

ROG Strix B550 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

Multiple Temperature Sources: Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI.

4-pin PWM/DC Fan Header: Every onboard header supports auto-detection of PWM or DC fans.

AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.


Zenbook 14

AI Networking

GameFirst VI analyzes current app usage and adjusts bandwidth accordingly to ensure smoother online experiences, even when multitasking.


Zenbook 14

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Sonic Studio Link

The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.

Sonic Studio Virtual Mixer

A virtual audio device that lets streamers combine sound output and output from different apps. This allows you to mix your voice and video game audio within streaming software. A variety of adjustment and monitoring tools provide a high level of digital control.


Zenbook 14

UNDENIABLY ROG STRIX

ROG Strix B550-F Gaming (Wi-Fi) embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.


Zenbook 14

DIY Friendly

1. Pre-mounted I/O shield: ROG’s patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

2. Q-LEDs: Onboard LEDs to indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

3. SafeSlot: The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.

4. BIOS FlashBack™: BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.
