Varenummer: 3525041

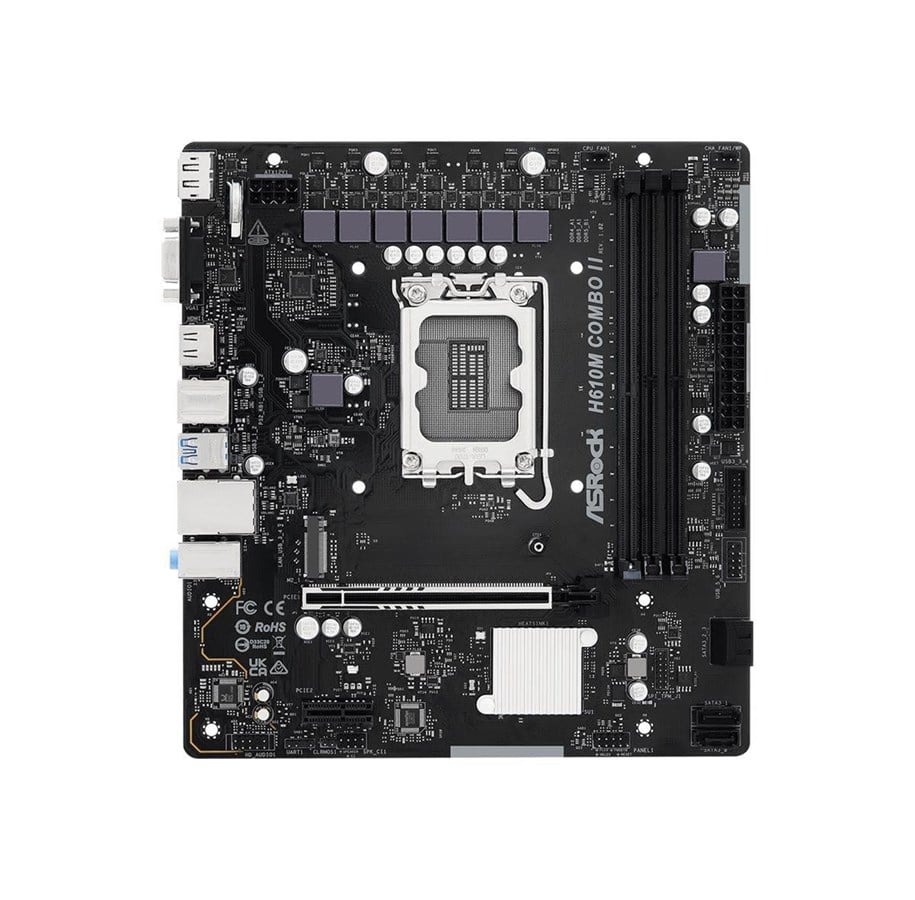

ASRock H610M COMBO II - motherboard - micro ATX - LGA1700 Socket - H610 Hovedkort - Intel H610 - Intel LGA1700 - DDR5 RAM - Micro-ATX
Hovedkort, micro ATX, LGA1700-sokkel, H610 Chipset, USB 3.2 Gen 1, Gigabit LAN, innbygd grafikk (CPU kreves), HD-lyd (8-kanalers)
820,00 kr
656,00 kr eksl. mva
Denne bundle inkluderer
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse
The ASRock H610M COMBO II motherboard is designed to support 12th, 13th, and 14th Generation Intel Core, Pentium, and Celeron processors, making it a versatile choice for various build configurations. With a micro ATX form factor, it offers a DIY-friendly design that facilitates easy installation and enhances user experience. Equipped with a robust Intel H610 chipset, this motherboard supports DDR5 SDRAM at speeds up to 5600 MT/s, ensuring ample performance for multitasking and demanding applications.Connectivity is a strong suit of the H610M COMBO II, featuring numerous USB ports including USB 3.2 Gen 1 for fast data transfer, alongside HDMI, DisplayPort, and VGA outputs for versatile video connections. With high-definition audio capabilities powered by the Realtek ALC897 audio codec, users can enjoy an immersive audio experience. This motherboard also features 6+1+1 phase power design, ensuring stability and reliability during operation, further enhanced by ASRock's range of utilities such as the Auto Driver Installer and Full HD UEFI BIOS for streamlined management and configuration.
Produsent
Varenummer
3525041
Model
90-MXBUN0-A0UAYZ
Ean
4711581494671
Til produsentens hjemmeside
Produktbeskrivelse
ASRock H610M COMBO II - hovedkort - micro ATX - LGA1700-sokkel - H610
Produkttype
Hovedkort - micro ATX
Brikkesett type
Intel H610
Prosessorsokkel
1 x LGA1700-sokkel
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium / Celeron)
Maks. RAM-størrelse
128 GB
Støttet RAM
2 DIMM-spor - DDR5, ikke-ECC, ECC (drift i ikke-ECC-modus), ikke-bufret
Lagerporter
4 x SATA-600, 1 x Ultra M.2
USB/FireWire-porter
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
Gigabit Ethernet
Generelt
Produkttype
Hovedkort - micro ATX
Brikkesett type
Intel H610
Prosessorsokkel
LGA1700-sokkel
Maks antall prosessorer
1
Kompatible prosessorer
(støtter 12./13. og 14. generasjon Intel Core / Pentium / Celeron)
Støttet RAM
Maks størrelse
128 GB
Teknologi
DDR5
Bussklokke
5600 MT/s, 4800 MT/s
Støttet RAM-integritetskontroll
Ikke-ECC, ECC (drift i ikke-ECC-modus)
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP) 3.0, støttede ECC-moduler kjører i ikke-ECC-modus
Lyd
Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC897
Tilpassede standarder
High Definition Audio
LAN
Nettverkskontroller
Realtek RTL8111H
Nettverksgrensesnitt
Gigabit Ethernet
Ekspansjon / Tilkoplinger
Utvidelsesspor
1 x CPU
3 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 3.0 x1
1 x Ultra M.2 (2280 M.2 Key M-spor)
3 x 288-pins DIMM
1 x PCIe 5.0 x16
1 x PCIe 3.0 x1
1 x Ultra M.2 (2280 M.2 Key M-spor)
Lagergrensesnitt
SATA-600 -kontakter: 4 x 7-pin seriell ATA
PCIe 3.0 -kontakter: 1 x M.2
PCIe 3.0 -kontakter: 1 x M.2
Grensesnitt
1 x HDMI
1 x VGA
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydinnlinje - minijakk
1 x PS/2-tastatur / -mus
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
1 x VGA
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
1 x lydinnlinje - minijakk
1 x PS/2-tastatur / -mus
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
Interne overflater
2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
1 x SPI - header
2 x USB 3.2 Gen 1 - header
1 x lyd - header
1 x SPI - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt
Egenskaper
BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS
Maskinvarefunksjoner
6+1+1 Phase Power Design, DIY Friendly Design, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Ultra M.2, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0
Diverse
Tilleggsutstyr inkludert
IO-skjerm
Medfølgende kabler
2 x Seriell ATA-kabel
Inkludert programvare
ASRock A-Tuning
Tilpassede standarder
FCC, ERP, EuP Ready
Bredde
22 cm
Dybde
20.3 cm
