Varenummer: 3414711

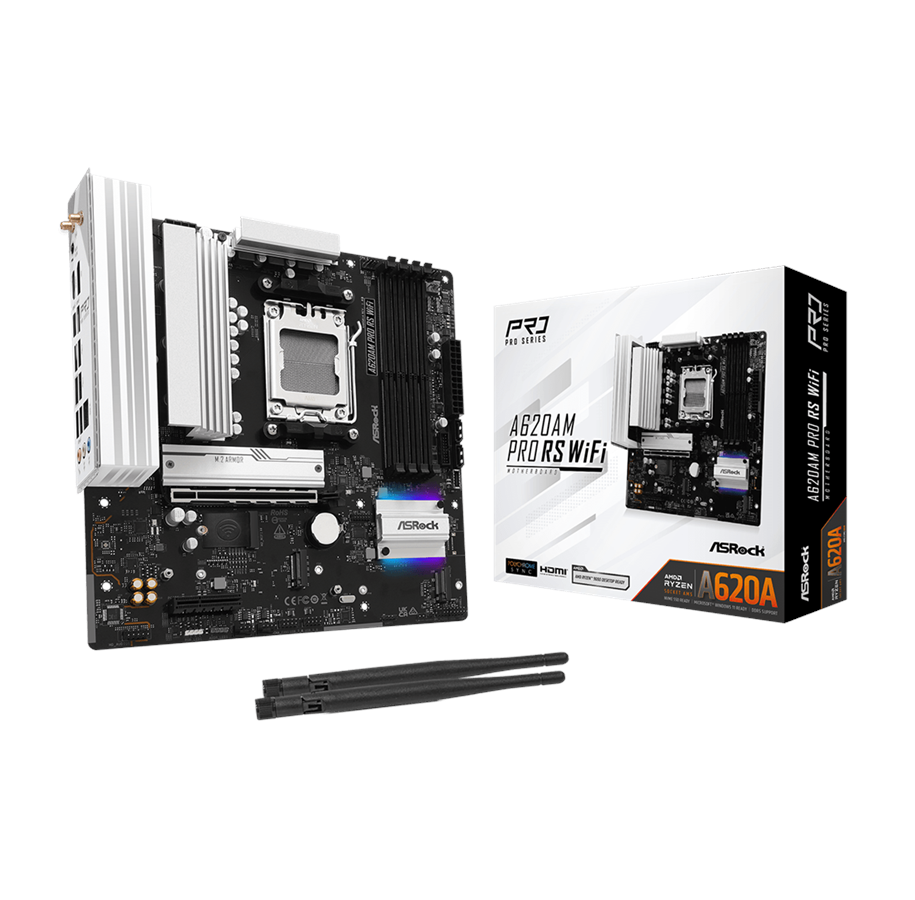

ASRock A620AM PRO RS WIFI Hovedkort - AMD A620A - AMD AM5 socket - DDR5 RAM - Micro-ATX

Hovedkort, størrelse: Micro-ATX, AMD AM5 socket, AMD A620A chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), lagerporter: 2 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A & C, skjermtilkobling: 1 x Displayport 1.4 / 1 x HDMI 2.1, Dragon RTL8125BG 2.5 Gigabit nettverk (LAN), WiFi 6E & Bluetooth 5.2, AMD Graphics støttes (Krever CPU med VGA), Realtek ALC897 HD Audio (8-kanaler) lydkort, ASRock Polychrome SYNC software

Denne bundle inkluderer

Norton 360 Deluxe - 25GB 1 User 3 Devices 12 Months - ESD - Multilingual Elektronisk

Verdt 490,00 kr Gyldig fra 07-10-2024 00:00 - så lenge lageret rekker
Gratis frakt (privatkunde)
1 stk. På lager - 1-3 dager til levering

The ASRock A620AM PRO RS WIFI motherboard is designed for those seeking robust performance and versatility in their PC builds. Supporting Ryzen processors from the 7000 to 9000 series and equipped with a powerful AMD A620A chipset, this micro ATX motherboard delivers an efficient and reliable platform for various computing needs. Featuring up to 4 DIMM slots, it supports high-speed DDR5 SDRAM, allowing memory speeds of up to 7200 MHz when overclocked. Additionally, the Nahimic Audio Enhancer ensures high-definition 8-channel audio output, providing an immersive sound experience for gaming and multimedia playback. With USB 3.2 Gen 1 and USB-C options, this motherboard offers extensive connectivity for peripherals and storage devices. Other features include a pre-mounted I/O shield, a BIOS FlashBack button, and customizable ASRock Polychrome RGB lighting for a personalized touch to your setup. Designed with multiple expansion slots, including PCIe 4.0 and M.2 configurations, the A620AM PRO RS WIFI allows for flexibility in graphics and storage upgrades. Integrated 2.5 Gigabit Ethernet and Wi-Fi 6E ensure fast and reliable network connectivity, catering to the demands of online gaming and streaming. This motherboard's durable 6-layer PCB design and advanced power delivery system, featuring Dr.MOS MOSFET and Hi-Density Power Connectors, enhance stability and longevity. With compliance to multiple standards, including RoHS and HDCP 2.3, it reflects quality and environmental consideration in its design, making it an excellent choice for both enthusiasts and everyday users.

Produsent
Varenummer
3414711
Model
90-MXBSW0-A0UAYZ
Ean
4711581490956
Til produsentens hjemmeside
Produktbeskrivelse
ASRock A620AM PRO RS WIFI - hovedkort - micro ATX - Socket AM5 - AMD A620A
Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD A620A
Prosessorsokkel
1 x Socket AM5
Kompatible prosessorer
Ryzen (støtter Ryzen 7000/8000/9000-serien)
Maks. RAM-størrelse
256 GB
Støttet RAM
4 DIMM-spor - DDR5, ikke-ECC, ikke-bufret
Lagerporter
2 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Ultra M.2
USB/FireWire-porter
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headere)
Lyd
HD-lyd (8-kanalers)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2

Generelt

Produkttype
Hovedkort - micro ATX
Brikkesett type
AMD A620A
Prosessorsokkel
Socket AM5
Maks antall prosessorer
1
Kompatible prosessorer
Ryzen (støtter Ryzen 7000/8000/9000-serien)

Støttet RAM

Maks størrelse
256 GB
Teknologi
DDR5
Bussklokke
7200 MT/s (O.C.)
Støttet RAM-integritetskontroll
Ikke-ECC
Registrert eller bufret
Ikke-bufret
Egenskaper
Dobbeltkanalsminnearkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP)

Lyd

Type
HD-lyd (8-kanalers)
Audio Codec
Realtek ALC897
Tilpassede standarder
High Definition Audio

LAN

Nettverkskontroller
Dragon RTL8125BG
Nettverksgrensesnitt
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2

Ekspansjon / Tilkoplinger

Utvidelsesspor
1 x CPU
4 x 288-pins DIMM
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x2-modus)
1 x M.2 socket (2230 M.2 Key E-spor)
3 x M.2 socket (2260/2280 M.2 Key M spor)
Lagergrensesnitt
SATA-600 -kontakter: 2 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -kontakter: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 3.0 -kontakter: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
Grensesnitt
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
2 x antenne
1 x lydinnlinje - minijakk
1 x lydutlinje - minijakk
1 x mikrofon - minijakk
Interne overflater
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x lyd - header
1 x SPI - header
1 x USB-C 3.2 Gen 1 - header
Strømkontakter
24-pin hovedstrømforsyningskontakt, 8-pin ATX12V-kontakt

Egenskaper

BIOS Type
AMI
BIOS-egenskaper
UEFI BIOS
Maskinvarefunksjoner
6+2+1 Phase Power Design, formontert I/O-skjerm, BIOS FlashBack-knapp, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), Hi-Density Power Connectors, Dr.MOS MOSFET, 6 Layer PCB, kjøleribbe design i aluminium, Nahimic Audio Enhacer, ASRock Polychrome RGB

Diverse

Tilleggsutstyr inkludert
2 x ASRock WiFi 2.4/5/6 GHz Antennas, 3 x M.2-skruer, avstandsdel for M.2-sokkel
Medfølgende kabler
2 x Seriell ATA-kabel
Inkludert programvare
ASRock A-Tuning, ASRock XFast LAN, ASRock Polychrome SYNC
Tilpassede standarder
DisplayPort 1.4, FCC Part 15 Subpart B, RoHS, HDCP 2.3, ErP Ready, EuP Ready
Bredde
24.4 cm
Dybde
24.4 cm

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
