Varenummer: 2476386

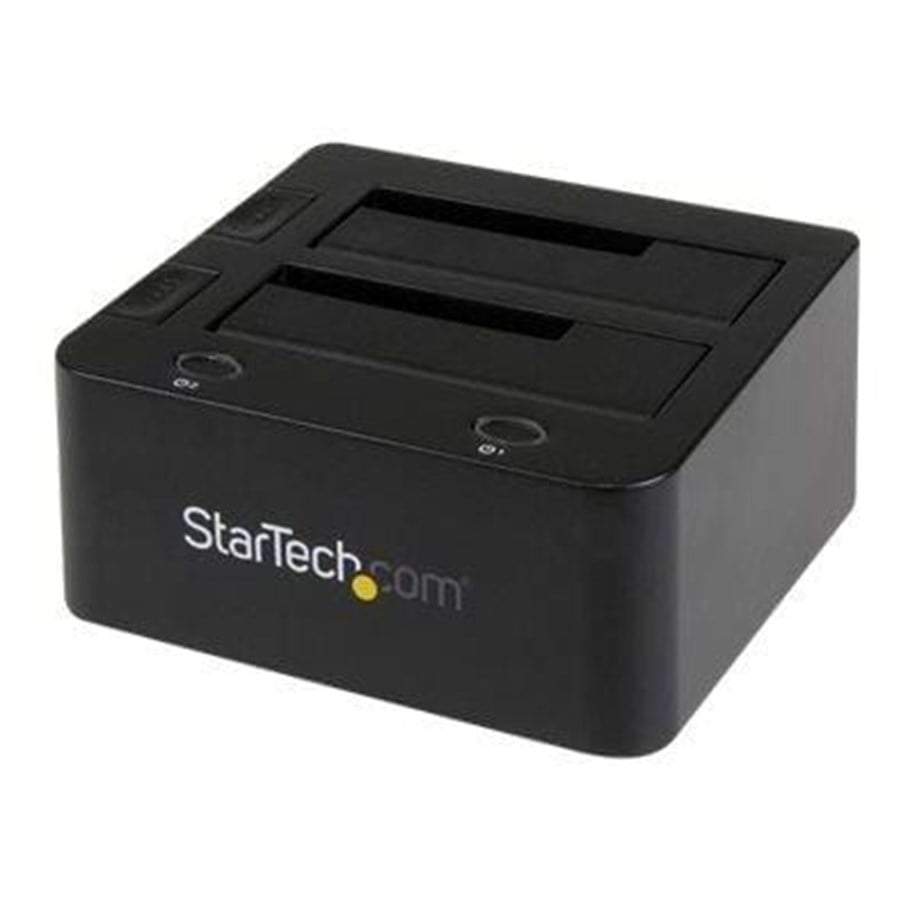

StarTech.com Universal Dock for 2.5/35in SATA & IDE HDD
USB 3.0 Dock for 2.5"/3.5" HDDs/SSDs with UASP (UNIDOCKU33), Diskkontroller, 2.5", 3.5", ATA / SATA 6Gb/s, 6 Gbit, USB 3.0, svart, for P/N: SVA12M5NA
1 056,00 kr
844,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
Lader følger med
Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.
The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Produsent
Varenummer
2476386
Model
UNIDOCKU33
Ean
0065030859813
Til produsentens hjemmeside
Lagringsmedia
Harddisk, SSD
Grensesnitt for lagringsdriver
Parallel ATA (IDE), SATA, Serial ATA II, Serial ATA III
Støttede lagringsdriverstørrelser
2.5,3.5"
Antall lagringsdrivere som støttes
2
Maksimal lagringskapasitet
6 TB
Vertsgrensesnitt
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) antall porter
1
DC-inngangskontakt
Ja
Produktfarge
Svart
Materiale
Plast
Maksimal dataoverføringshastighet
5 Gbit/s
Hot-swap
Ja
Plugg inn og spill
Ja
RAID-støtte
Nei
LED-indikatorer
Aktivitet, Kraft indikator
UASP-støtte
Ja
Sertifisering
CE, FCC
Innebygd vifte
Nei
AC-inngangsspenning
110-240 V
Innput-strøm
1.3 A
Utgangsstrøm
12 V
Utgangsstrøm
3 A
Strømpluggtype
Type M
Bredde
130 mm
Dybde
147 mm
Høyde
70 mm
Vekt
500 g
Pakkebredde
123 mm
Pakkedybde
187 mm
Pakkehøyde
214 mm
Pakkevekt
1 kg
AC-adapter bunt
Ja
Kabler inkludert
USB
Bruksanvisning
Ja
Driftstemperatur (T-T)
5 - 80 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Relativ luftfuktighet under drift (H-H)
8 - 90%
Brikkesett
JMicron - JMS561U, JMD330
Gjennomsnittstid mellom feil (MTBF)
30000 timer
Samsvarssertifikat
RoHS
Harmonisert system (HS)-kode
84733080
Masterkassens (ytterkassens) bredde
210 mm
Masterkassens (ytterkassens) lengde
625 mm
Masterkassens (ytterkassens) høyde
450 mm
Produkter per masterkasse (ytterkasse)
10 stykker
Harddisk
Lagringsmedia
Harddisk, SSD
Grensesnitt for lagringsdriver
Parallel ATA (IDE), SATA, Serial ATA II, Serial ATA III
Støttede lagringsdriverstørrelser
2.5,3.5"
Antall lagringsdrivere som støttes
2
Maksimal lagringskapasitet
6 TB
Tilkoblingsevne
Vertsgrensesnitt
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) antall porter
1
DC-inngangskontakt
Ja
Egenskaper
Produktfarge
Svart
Materiale
Plast
Maksimal dataoverføringshastighet
5 Gbit/s
Hot-swap
Ja
Plugg inn og spill
Ja
RAID-støtte
Nei
LED-indikatorer
Aktivitet, Kraft indikator
UASP-støtte
Ja
Sertifisering
CE, FCC
Nedkjøling
Innebygd vifte
Nei
Energihåndtering
AC-inngangsspenning
110-240 V
Innput-strøm
1.3 A
Utgangsstrøm
12 V
Utgangsstrøm
3 A
Strømpluggtype
Type M
Vekt og dimensjoner
Bredde
130 mm
Dybde
147 mm
Høyde
70 mm
Vekt
500 g
Datainnpakking
Pakkebredde
123 mm
Pakkedybde
187 mm
Pakkehøyde
214 mm
Pakkevekt
1 kg
Emballasjeinnhold
AC-adapter bunt
Ja
Kabler inkludert
USB
Bruksanvisning
Ja
Miljømessige forhold
Driftstemperatur (T-T)
5 - 80 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Relativ luftfuktighet under drift (H-H)
8 - 90%
Andre funksjoner
Brikkesett
JMicron - JMS561U, JMD330
Gjennomsnittstid mellom feil (MTBF)
30000 timer
Samsvarssertifikat
RoHS
Logistikk data
Harmonisert system (HS)-kode
84733080
Masterkassens (ytterkassens) bredde
210 mm
Masterkassens (ytterkassens) lengde
625 mm
Masterkassens (ytterkassens) høyde
450 mm
Produkter per masterkasse (ytterkasse)
10 stykker
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
