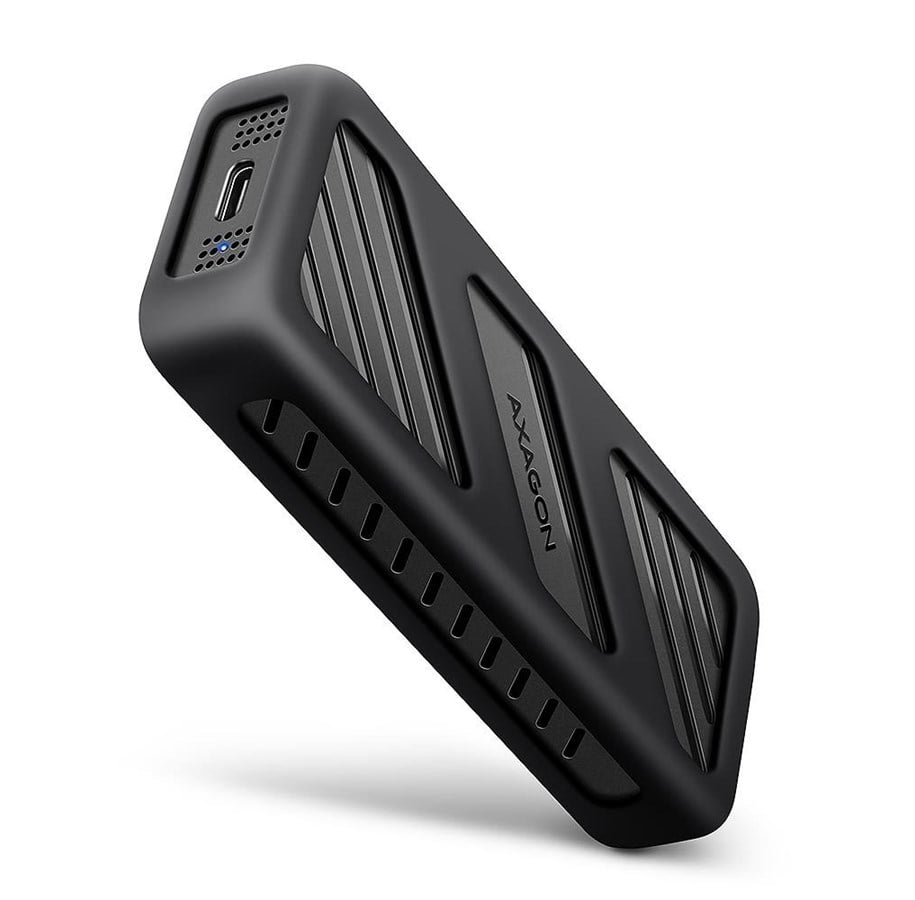

AXAGON USB-C 20 Gbps Armored Box for NVMe M.2 SSD

Fast external AXAGON EEM2-20G ARMORED box with USB 20 Gbit/s interface for M.2 NVMe SSDs. The double-sided USB-C connector on the box enables a reliable connection. In the package you will find a USB-C to USB-C cable to connect the box to your computer.

Thanks to the USB 20 Gbit/s interface, the transmission rate is up to 20 Gbit/s. To take full advantage of the speed of the box, the controller of the connected device must be compatible with USB 3.2 Gen 2x2. These controllers are typically used in gaming laptops and modern desktop computers. The external M.2 box also supports modern features such as UASP, TRIM and allows reading S.M.A.R.T. disk status monitoring information. Standby support when idle.

The box supports four different M.2 SSD lengths: 30 mm, 42 mm, 60 mm, and 80 mm. Drives can be single- or double-sided. The box does not limit the capacity of inserted SSDs. Opening the box with only one screw makes mounting and dismounting the M.2 SSD quick and easy, expanding the use cases, e.g., for data migration or testing.

Aluminium body and thermal conductive pad provide very good cooling for the M.2 SSD. Side vents ensure sufficient air circulation, extending the service life and preventing Thermal Throttling. The silicone sleeve protects against shocks, prevents sliding, and provides a comfortable grip. The outer metal housing is black with an elegant finish that prevents fingerprints.

Inserting an M.2 SSD creates a fast, compact, and universal external drive that can be used with computers, laptops, mobile phones, and tablets.

• USB 20 Gbit/s (USB 3.2 Gen 2x2), USB-C female connector
• Compatible with USB 5 Gbit/s and USB 10 Gbit/s

• NVMe M.2 SSDs
• Designed for M-Key or B+M-Key card formats
• NGFF 75-pin M-Key slot for M.2 drives

• Laptop/PC with USB 20 Gbit/s (USB 3.2 Gen 2x2) port: max 20 Gbit/s
• Laptop/PC with USB 10 Gbit/s (USB 3.2 Gen 2) port: max 10 Gbit/s
• Laptop/PC with USB 5 Gbit/s (USB 3.2 Gen 1 / USB 3.0) port: max 5 Gbit/s
• Compatible with USB4, Thunderbolt 3/4: max 10 Gbit/s
• Real bandwidth approx. 2000 MB/s (2 GB/s), limited by USB 3.2 Gen 2x2

• Supports transmission rates 20000 / 10000 / 5000 Mbit/s
• Supports M-Key or B+M-Key NVMe (PCI-Express) M.2 SSDs with no capacity limit
• Supports M.2 sizes 2230, 2242, 2260, 2280 mm
• Supports single- and double-sided M.2 SSDs
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3c Specification
• Compliant with USB Mass Storage Class Specification
• Supports BOT (Bulk-Only Transport)
• UASP support for faster data transfer in Windows 8 and later
• TRIM support to prevent gradual SSD performance degradation
• S.M.A.R.T. monitoring supported
• Boot from SSD in external box supported
• Hot Plug support allows connection during operation
• Full Plug-and-Play support
• Power via USB bus up to 900 mA sufficient
• Blue LED indicates USB port connection (solid) and data transfer (blinking)
• Robust aluminium body and thermal pad aid cooling
• Higher surface temperature is normal – aluminium dissipates heat efficiently
• USB 3.2 Gen 2x2 Type C female connector
• USB-C to USB-C cable 38 cm included

• Dimensions: 15 × 112 × 40 mm (H × W × D)
• Weight: 83 g (without cable, SSD, or sleeve)

• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS, Android
• Compatibility depends on OS and device manufacturer
• Note: For Windows 7, check OS support and driver availability with SSD manufacturer

• USB-C 20 Gbit/s external box for M.2 SSD
• Silicone sleeve
• USB-C to USB-C cable 38 cm
• 1 thermal conductive pad
• Mounting kit and screwdriver
• Multilingual manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA)
• Packed in a cardboard box with hanging hole
