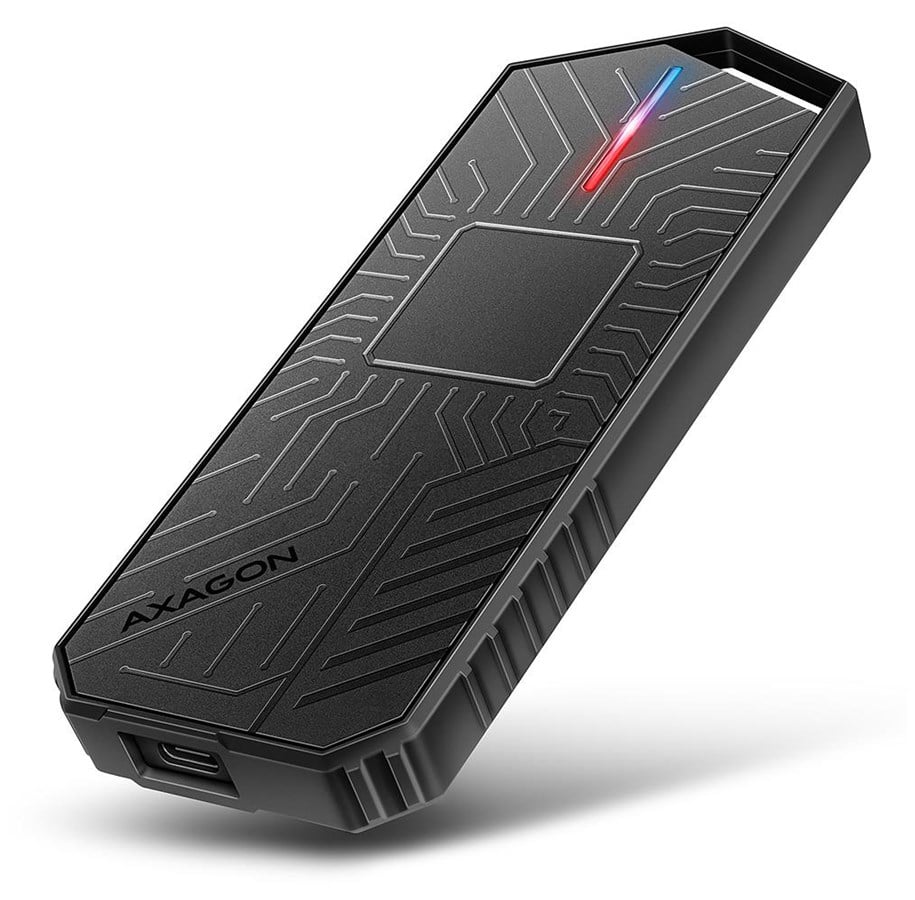

AXAGON USB-C 10 Gbps Game M.2 Box for NVMe / SATA M.2 SSD

Gaming external AXAGON EEM2-GAM GAME M.2 box with USB 10 Gbit/s interface for M.2 NVMe or SATA SSD disks. The double-sided USB-C connector on the box enables a reliable connection. In the package you will find two cables to connect the box to your computer: one USB-C – USB-C and one USB-C – USB-A. You can connect the box to any free USB port on your notebook.

The transmission rate is up to 10 Gbit/s thanks to the fast USB 3.2 Gen 2 interface. The external M.2 box also supports modern features such as UASP, TRIM and enables reading S.M.A.R.T. disk status monitoring information.

A unique feature, thanks to the new chipset, is the possibility of using both M.2 NVMe and SATA disks. You don't have to think about what type of M.2 disk you put in the box. The advantage is the attachment of four different lengths of SSD cards – 30, 42, 60 and 80 mm. M.2 cards can be single-sided or double-sided. The box does not limit the capacity of inserted SSD.

A great advantage is the screwless opening of the box. Just press the button on the side to release the bottom cover. Changing disks is fast and easy.

The stylish frame for M.2 drives will impress you with its premium gaming design in black with an elegant surface that highlights your gaming setup. The RGB LED indication adds a stylish look and blends perfectly with any gaming laptop, enhancing the atmosphere of your gaming environment.

Also included is a functional sleeve that protects the box opening button, increases overall protection, and offers a loop for hanging.

Aluminium box body and thermal conductive pad provide ideal cooling for the inserted M.2 SSD. This extends the life of the disk and prevents slowing down of the disk speed (thermal throttling).

Inserting an M.2 SSD into this box easily creates a fast, compact and versatile external drive that can be used with PCs, laptops, mobile phones and tablets.

Input:

• USB 10 Gbit/s (USB 3.2 Gen 2), connector USB-C female
• Compatible with 480 Mbit/s, USB 5 Gbit/s, USB4 and Thunderbolt 3/4

Device support:

• NVMe M.2 SSD disks
• SATA M.2 SSD disks
• Designed for M key or B+M key card formats
• NGFF 75-pin M key slot for M.2 drives

Other features:

• Supports transmission rates 10 000 / 5 000 / 480 Mbit/s
• Support of M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitation
• Support of M.2 disks of sizes 2230, 2242, 2260, and 2280 mm
• Support of both single-sided and double-sided M.2 SSDs
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3 specification
• Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gbit/s (600 MB/s)
• Compliant with USB Mass Storage Class specification
• Total bandwidth / transmission rate determined by USB interface used (theoretical 10 Gbit/s)
• Real adapter bandwidth / transmission rate ~1000 MB/s (1 GB/s), limited by USB 3.2 Gen 2 interface
• Supports BOT (Bulk-Only Transport)
• Supports UASP for faster data transmission in Windows 8 and later
• Supports TRIM to limit gradual SSD performance degradation
• Supports S.M.A.R.T. system for monitoring disk condition
• SSD boot support in external box
• Hot Plug support allows connection while running
• Full Plug and Play support
• Power supply via USB bus up to 900 mA from one USB port
• RGB LED indication
• Heavy-duty aluminium body and thermal conductive pad for improved cooling
• Higher box surface temperature is normal – aluminium body dissipates heat efficiently
• Connection via USB 3.2 Gen 2 type C female connector
• Two USB type C or A male – USB type C male cables, 50 cm included

Other data:

• Box dimensions 13 × 130 × 55 mm (H × W × D)
• Box weight 105 g (without cable or M.2 disk)

Supported operating systems:

• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS, Android
• Compatibility depends on updated OS and device manufacturer support
• Note: For Windows 7, check OS support and driver availability with M.2 SSD manufacturer

Package contains:

• USB-C 10 Gbit/s external box for M.2 SSD
• Protective sleeve
• USB-C – USB-C cable 50 cm
• USB-A – USB-C cable 50 cm
• 2 thermal conductive pads
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA
• Packed in a cardboard box with a hanging hole
