NAVILOCK GNSS Receiver
DeLOCK 62531 gnss-mottaker
1 473,00 kr
1 178,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 8-10 dager til forsendelse

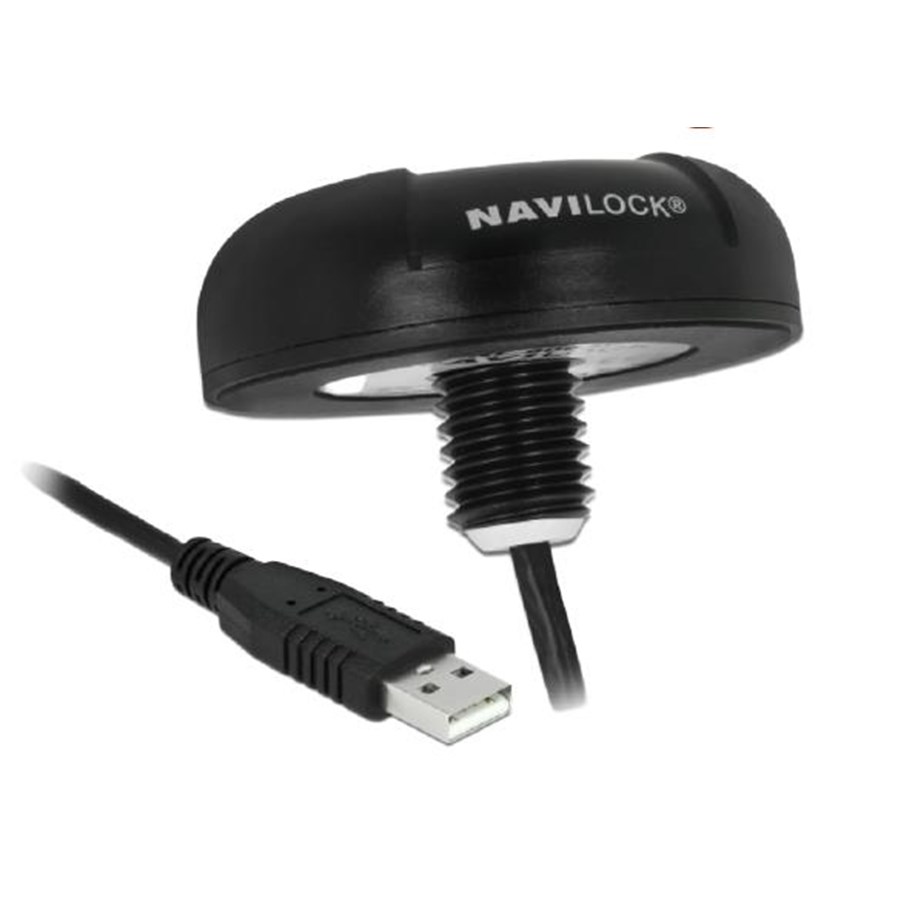

The USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The NL-8004U GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.
Connector: USB 2.0 Type-A male
Chipset: u-blox 8 UBX-M8030-KT
Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz
Accepts the signals of up to 72 satellites at the same time
Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
Auto Baud Rate up to 115200 bps
Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)
Sensibility max. -167 dBm
IPX7 protection class
Connector: USB 2.0 Type-A male
Chipset: u-blox 8 UBX-M8030-KT
Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO E1, 1575.4200 MHz QZSS L1, 1575.4200 MHz
Accepts the signals of up to 72 satellites at the same time
Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
Auto Baud Rate up to 115200 bps
Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)
Sensibility max. -167 dBm
IPX7 protection class
Produsent
Varenummer
3368168
Model
62531
Ean
4043619625314
Til produsentens hjemmeside
Brukte signaler/anvendte signaler
B1, E1, L1
GPS
Ja
GLONASS
Ja
BeiDou
Ja
Galileo-navigasjon
Ja
Quasi-Zenith Satellite System (QZSS)
Ja
Posisjoneringshastigheter
10,20 Hz
Akselerometer
Ja
Maksimal opereringsrekkevidde
4,5 m
Produktfarge
Svart
Internasjonal beskyttelses (IP)-kode
IPX7
Ethernet/bredbåndsforbindelse
Nei
Mobilnettverksgenerasjon
Nei
AC-adapter utgangsspenning
5 V
Driftstemperatur (T-T)
-20 - 60 °C
Bredde
62 mm
Dybde
62 mm
Høyde
21 mm
Egenskaper
Brukte signaler/anvendte signaler
B1, E1, L1
GPS
Ja
GLONASS
Ja
BeiDou
Ja
Galileo-navigasjon
Ja
Quasi-Zenith Satellite System (QZSS)
Ja
Posisjoneringshastigheter
10,20 Hz
Akselerometer
Ja
Maksimal opereringsrekkevidde
4,5 m
Design
Produktfarge
Svart
Internasjonal beskyttelses (IP)-kode
IPX7
Nettverksbygging
Ethernet/bredbåndsforbindelse
Nei
Mobilnettverksgenerasjon
Nei
Energihåndtering
AC-adapter utgangsspenning
5 V
Miljømessige forhold
Driftstemperatur (T-T)
-20 - 60 °C
Vekt og dimensjoner
Bredde
62 mm
Dybde
62 mm
Høyde
21 mm
