Varenummer: 3440980
Tripp Lite Eaton Series USB-C Dock for Microsoft Surface - 4K HDMI USB 3.2 Gen 2 USB-A Hub GbE 100W PD Charging Black
4K HDMI, USB 3.2 Gen 2, USB-A Hub, GbE, 100W PD Charging, Black, Dokkingstasjon, USB-C 3.2 Gen 2, HDMI, 1GbE
1 675,00 kr
1 340,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 12-14 dager til forsendelse
Enheten støtter USB PD hurtiglading.
USB PD
This multipurpose dock is compatible with any Surface device with a USB-C port. An adjustable clamp firmly secures the dock to compatible Surface devices up to 12 inches (30.5 centimeters) wide. You can connect to a wired Gigabit Ethernet network, transmit 4K video with audio to a larger screen, add a thumb drive and other USB peripherals, and charge your Surface, all at the same time. Note: This dock clamps to the following models: Surface GO, Surface GO 2, Surface GO 3, Surface Pro 7, Surface Pro 8 and Surface Pro X. It also works with other Surface devices with a USB-C port, but cannot clamp to them.The HDMI port supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. HDCP 2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. You may also connect to a DVI display by connecting an HDMI-to-DVI adapter.Two USB-A ports and one USB-C port support USB 3.2 Gen 2 data transfer rates up to 10 Gbps for USB peripherals, such as flash drives, RAID storage, mice and keyboards. Another USB-A port supports USB 2.0 specifications for devices that require less speed. All ports are backward compatible with previous USB generations, so you can use legacy equipment.The USB-C Power Delivery port supports power output up to 20 V 5 A (100 W), which is more than sufficient for charging and powering the connected Surface. Just connect the device's wall charger to both the USB-C PD port and an AC outlet.The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable, and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Produsent
Varenummer
3440980
Model
U442-DOCK14-MS
Til produsentens hjemmeside
Produktbeskrivelse
Eaton Tripp Lite Series USB-C Dock for Microsoft Surface - 4K HDMI, USB 3.2 Gen 2, USB-A Hub, GbE, 100W PD Charging, Black - dokkingstasjon - USB-C 3.2 Gen 2 - HDMI - 1GbE
Produkttype
Dokkingstasjon
Dokkegrensesnitt
USB-C 3.2 Gen 2
Videogrensesnitt
HDMI
Dimensjoner (BxDxH)
22.3 cm x 3.35 cm x 3.12 cm
Vekt
249 g
Farge
Svart
Nettverkstilknytning
Gigabit Ethernet
Generelt
Produkttype
Dokkingstasjon
Bredde
22.3 cm
Dybde
3.35 cm
Høyde
3.12 cm
Vekt
249 g
Eksteriørfarge
Svart
Video
Maks. oppløsningsdetaljer
3840 x 2160 - 30 Hz
Nettverkstilknytning
Datakjedeprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet
Tilpassede standarder
USB 3.2 Gen 2, USB 2.0
Ekspansjon / Tilkoplinger
Grensesnitt
2 x USB 3.2 Gen 2 - 9-pins USB-type A
1 x USB 2.0 - 4-pins USB type A
1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x nettverk - 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x USB 2.0 - 4-pins USB type A
1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x nettverk - 10Base-T/100Base-TX/1000Base-T - RJ-45
Diverse
Medfølgende kabler

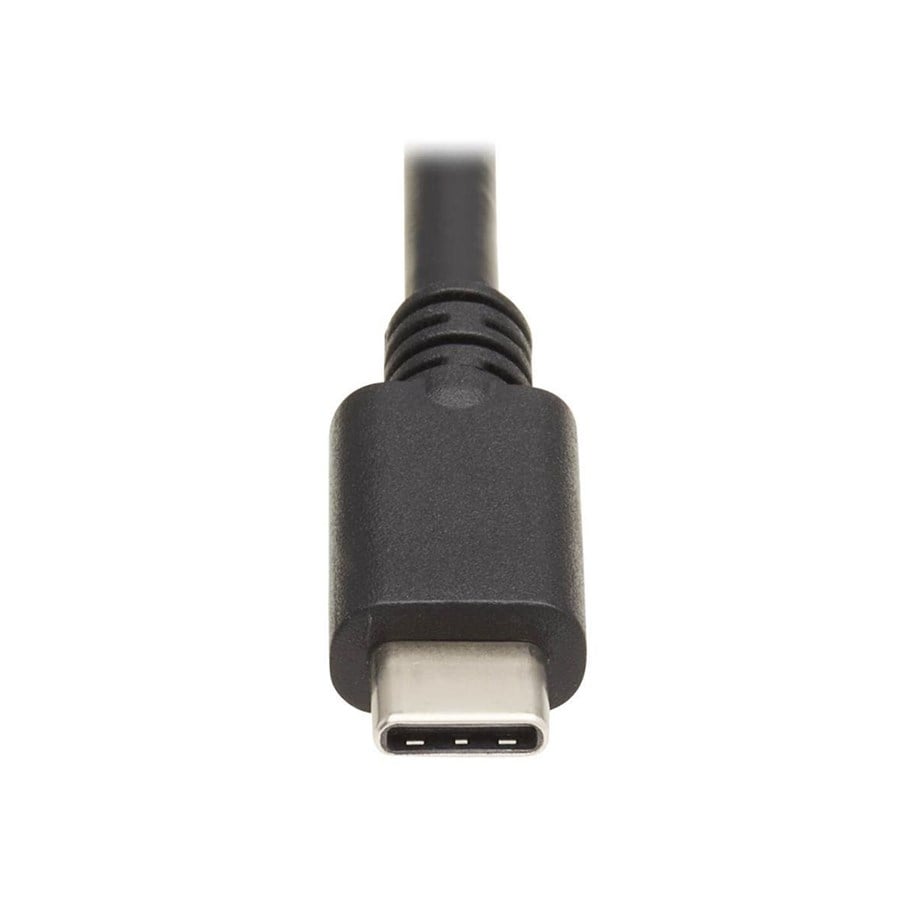

USB-C-kabel - integrert - 30.5 cm
Egenskaper
4:2:0 profile support, 4:2:2 profile support, DisplayPort Alt Mode, 100 W-effektlevering, HDR-støtte, plasthus, 36-bit Deep Color, 4:4:4-fargedelprøvetaking, justerbar klemme
Tilpassede standarder
USB Power Delivery 3.0, HDCP 2.3, HDCP 1.4, EDID-kompatibel, RoHS, REACH, FCC
Størrelser og vekt (forsendelse)
Fraktbredde
28 cm
Fraktdybde
11 cm
Frakthøyde
4.5 cm
Fraktvekt
259 g
Miljøparametere
Min. driftstemperatur
5 °C
Maks. Driftstemperatur
35 °C
