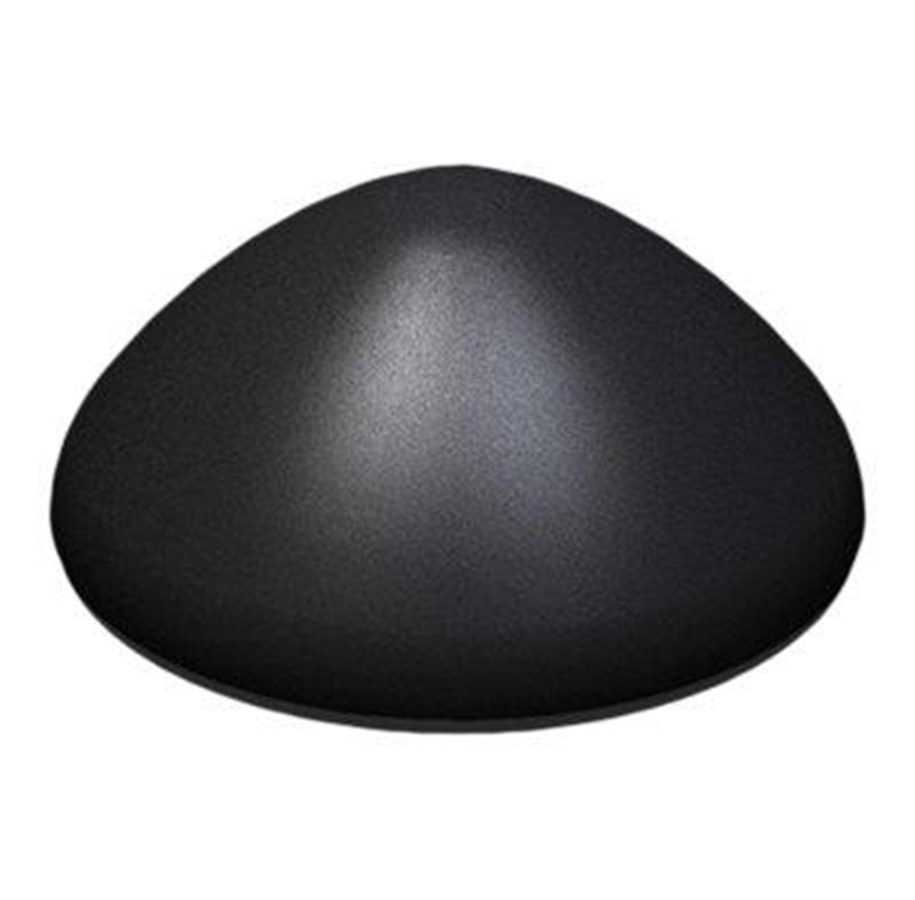

Panorama Antennas LP[G]-7-38[-24-58] - aerial

The Panorama LP[G]-7-38[-24-58] range is a cost-effective, robust low profile antenna suitable for IoT and M2M use in hostile environments. The antenna covers 698-960/1710-3800MHz supporting 2G/3G/4G and 3.5 GHz 5G bands, with optional 2.4/5.0 GHz Wi-Fi and/or GPS/GNSS with 30dB LNA. The effective element design ensures a robust communications link, even in areas with the poor network coverage. It can be installed on conductive or non-conductive panels, in a single 19 mm (3/4") hole and is fitted with flame retardant RG174 cable(s) compliant with UN ECE R118.03 and available with FAKRA or SMA connectors. The antenna range is certified to both IK10 and IP69K, when correctly installed, meeting the most stringent vandalism and ingress protection standards.
